Temperature Controlled Ice Cream Truck Body For Frozen Food Transport Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | ISO , SGS, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flat pack |
| Delivery Time: | 10 days |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Model NO.: | SNOWFALL TRUCK BODY | Strength: | Prolonged Life Of Vehicle |
|---|---|---|---|
| Keep Cooling: | 16 Hours | Charge: | 8 Hours |
| Environmental: | No Noise And No Vibration | Transport Package: | Export Standard |
| Trademark: | SNOWFALL | Origin: | Guangzhou, China |
| HS Code: | 8707909000 | Supply Ability: | 100 Sets Per Month |
| Service: | OEM | Color: | White Or Customizable |
| Size: | Customizable | Power: | 380V Or 220V |
| Refrigeration Gas: | R404A | Character: | Regardless Of Engine Of The Vehicle |
| Customization: | Available | Customized Request | ||
| Highlight: | Customizable Ice Cream Truck Body,Temperature Controlled Ice Cream Truck Body,Frozen Food Transport Truck Body |
||
Product Description
Temperature Controlled Ice Cream Truck Body For Frozen Food Transport
Key Features
- Customizable design for various truck sizes and specifications
- Prolonged vehicle life with efficient cooling system
- Maintains cooling for up to 16 hours on an 8-hour charge
- Environmentally friendly operation with no noise or vibration
- OEM services available with white or customizable colors
- Advanced eutectic plate system for efficient temperature control
- Independent operation from vehicle engine (380V/220V power)
Product Specifications
| Model Number | SNOWFALL TRUCK BODY |
|---|---|
| Transport Package | Export Standard |
| Origin | Guangzhou, China |
| HS Code | 8707909000 |
| Supply Capacity | 100 Sets Per Month |
| Refrigeration Gas | R404A |
| Power Requirements | 380V or 220V |
Technical Description

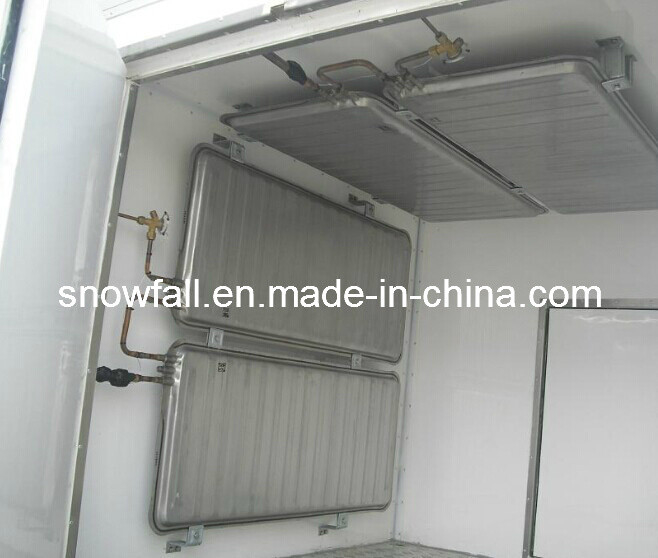

The ice cream truck body consists of panel, compressor, condenser, control box and eutectic (freezing) plate. This innovative refrigeration system maintains cold temperatures for extended periods by creating latent heat during the slow dissolution of fluid after freezing at specific temperatures.
The system operates by accumulating cold on freezing plates during nighttime operation, allowing for daytime cold storage without continuous power. This efficient design provides:
- Improved vehicle performance with engine-independent 380V/220V power source
- Pleasant transportation conditions (noise and vibration-free operation)
- Early cooling capability for frozen products, extending selling time
- Reliable cryogenic refrigeration with 100mm whole forming type urethane panel
- Reduced mechanical issues due to complete disconnection from vehicle engine
Technical Specifications by Model
| Vehicle | Truck Body Size (L*W*H mm) | Condensing Unit | Electric | Compressor | Eutectic Plate (Stainless Steel) | Freeze Capacity (kcal) | Refrigeration Gas |
|---|---|---|---|---|---|---|---|
| 1.0t | 3160×1740×1650 | 3 HP | 3pole 380v 50hz:2.2w |
Copeland scroll type | 5 pcs (W560×L1250×T50) |
9450kcal | R404A 3.0kg |
| 2.5t | 4380×2000×1920 | 5 HP | 3pole 380v 50hz:2.2w |
8 pcs (W560×L1550×T50) |
15120kcal | R404A 4.5kg | |
| 3.5t | 4800×2000×2000 | 5 HP | 3pole 380v 50hz:2.2w |
9 pcs | 17010kcal | R404A 4.5kg | |
| 5.0t | 6250×2450×2300 | 5 HP | 3pole 380v 50hz:2.2w |
11 pcs | 20790kcal | R404A 4.5kg | |
| 8.0t | 7500×2500×2300 | 5 HP | 3pole 380v 50hz:2.2w |
13 pcs | 24570kcal | R404A 4.5kg | |
| 11.0t | 9150×2500×2250 | 7.5 HP | 3pole 380v 50hz:2.2w |
15 pcs | 28350kcal | R404A 6.0kg |
