Ice Cream Eutectic Plate Truck Body low temperature reefer van body
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | ISO , SGS, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flat pack |
| Delivery Time: | 10 days |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Highlight: | Ice Cream Eutectic Plate Truck Body,Ice Cream Reefer Van Body,Low Temperature Reefer Truck Body |
||
|---|---|---|---|
Product Description

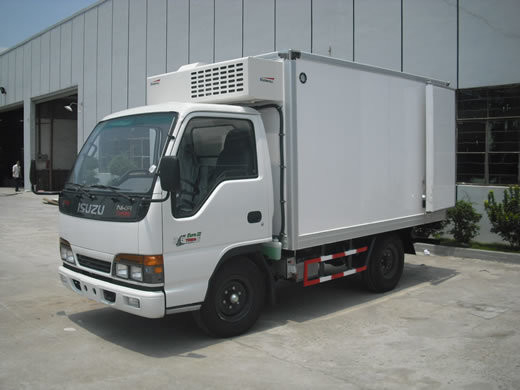

Ice Cream Eutectic Plate Truck Body Low Temperature Reefer Van Body
Eutectic Cold Plate System Overview
The Eutectic Cold Plate System is an advanced refrigeration solution widely used in Europe for frozen food transportation. This innovative system extends vehicle lifespan by utilizing electric power instead of the truck engine for cooling operations.
The system works by accumulating cold energy in freezing plates during nighttime refrigerator operation, then maintaining product temperature throughout the day using this stored cold energy.
Key Features
- Improved vehicle performance: Operates on 380V/220V power independent of the vehicle engine
- Ultra-low temperature capability: Maintains -25℃ for 16 hours with -40℃ cooling capacity
- Extended selling window: Enables early cooling operation and prolonged product freshness
- Reduced mechanical issues: Completely disconnected from vehicle engine operation
Technical Specifications
| Vehicle | Truck Body Size (L×W×H mm) | Condensing Unit | Electric | Compressor | Eutectic Plate (STS) | Freeze Capacity (kcal) | Refrigeration Gas |
|---|---|---|---|---|---|---|---|
| 1.0t | 3160×1740×1650 | 3HP | 3pole 380V-50HZ:2.2W | Copeland Scroll type | 5pcs | 9450kcal | R404A |
| 2.5t | 4380×2000×1920 | 5HP | 3pole 380V-50HZ:3.75W | 8pcs | 15120kcal | R404A | |
| 3.5t | 4800×2000×2000 | 5HP | 3pole 380V-50HZ:3.75W | 9pcs | 17010kcal | R404A | |
| 5.0t | 6250×2450×2300 | 7.5HP | 3pole 380V-50HZ:5.5W | 11pcs | 20790kcal | R404A | |
| 8.0t | 7500×2500×2300 | 7.5HP | 3pole 380V-50HZ:5.5W | 13pcs | 24570kcal | R404A | |
| 11.0t | 9150×2500×2250 | 7.5HP | 3pole 380V-50HZ:7.5W | 15pcs | 28350kcal | R404A |
