Top Mouted Truck Air Conditioning Refrigeration Units For Refrigerated Food Transport
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | CE, ISO |
| Model Number: | SF-620 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | USD 2000/set |
| Packaging Details: | Carton , Woodcase |
| Delivery Time: | 4 days |
| Supply Ability: | 100 sets/ month |
|
Detail Information |
|||
| Temperature Range: | -20°C To15°C | Warranty: | 1 Year Limited Warranty |
|---|---|---|---|
| Compressor Type: | Swash Plate Compressor | Installation Type: | Front Mount |
| Condenser Type: | Air-cooled | Dimensions: | 570x1260x435mm, 640x1290x180mm |
| Refrigerant Type: | R404a | Power Source: | Compressor Engine Type |
| Weight: | 85kg | Defrost Type: | Hot Gas Or Electric |
| Cooling Capacity: | 4900Kacl/hr | Controller Type: | Electromechanical |
| Certifications: | CE, ISO | Evaporator Type: | Air-cooled |
| Highlight: | Truck Air Conditioning Refrigeration Units,Truck Refrigeration Units Top Mouted,Refrigerated Food Transport Refrigeration Unit |
||
Product Description
Top Mounted Truck Air Conditioning Refrigeration Units For Refrigerated Food Transport
Key Specifications
- Model: SF-620
- Temperature Range: -20°C to 15°C
- Warranty: 1 year limited warranty
- Compressor Type: Swash plate compressor
- Installation Type: Front mount
- Weight: 85kg
- Cooling Capacity: 4900Kcal/hr
- Certifications: CE, ISO
Product Overview

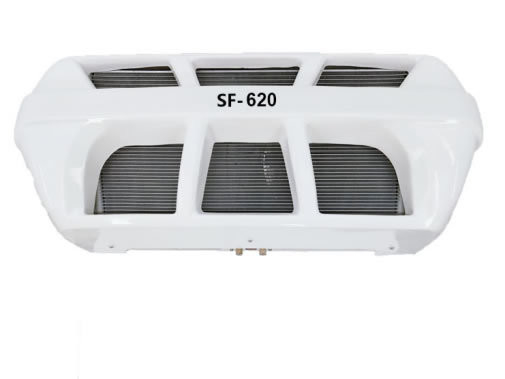

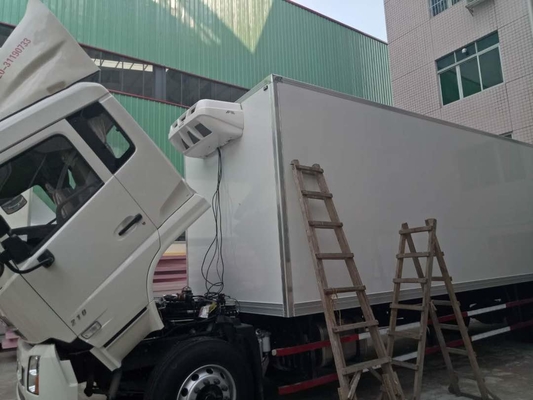

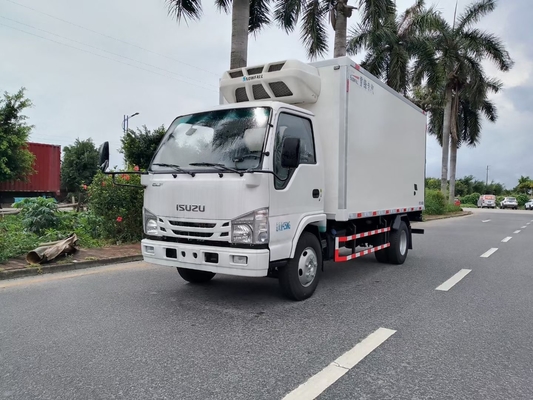

The SF-620 is a top-mounted refrigeration unit designed for light and medium trucks, suitable for transporting refrigerated and frozen food, dairy products, fruits, ice cream, fresh agricultural products, and industrial electronic products.
This reliable unit offers stable refrigeration performance with options for engine-driven operation or standby electric refrigeration system (DC220V/DC380V).
Technical Specifications
| Cooling Capacity | |
|---|---|
| Environmental Temperature 35°C | 4900Kcal at 0°C, 2800Kcal at -18°C |
| Compressor Details | |
| Model | QP16/QP21 |
| Displacement | 163cc/215cc |
| Condenser Details | |
| Type | P.F. |
| Fan Type | Axial fan (3 Fans x 1000m³/h) |
| Voltage | DC 12V/DC24V |
| Evaporator Details | |
| Type | Inner screw tube and aluminium fin |
| Fan Type | Axial fan (2 Fans x 1000m³/h) |
| Voltage | DC 12V/DC24V |
Dimensions & Weight
- SF-620 Evaporator: 640×1290×180mm (18.5kg)
- SF-620 Condenser: 570×1260×435mm (27.1kg)
Key Features
- Low cost, low maintenance operation
- Energy saving and environmentally friendly
- Low noise operation
- Option for inner bottom hanging condenser
- Automatically hot air defrost system
- Split direct drive unit structure
- Optional electric standby system (AC 220V/AC 380V)
Applications
Ideal for refrigerated transport vehicles with heat preservation compartments ranging from 14 to 50 cubic meters, perfect for:
- Frozen food transport
- Dairy products
- Fresh fruits and vegetables
- Ice cream
- Industrial electronic products
