Keep Fresh Transport Refrigeration Units Truck Freezer Unit For Smooth Transportation
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-T400 | Condition: | New |
|---|---|---|---|
| Transport Package: | Carton | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | Customization: | Available | Customized Request |
| Highlight: | Keep Fresh Transport Refrigeration Units,Smooth Transportation Truck Freezer Unit |
||
Product Description
Keep Fresh Transport Refrigeration Units Truck Freezer Unit For Smooth Transportation
Product Specifications
Model NO.: SF-T400
Condition: New
Transport Package: Carton
Trademark: SNOWFALL
Origin: Guangzhou, China
Customization: Available
Product Overview

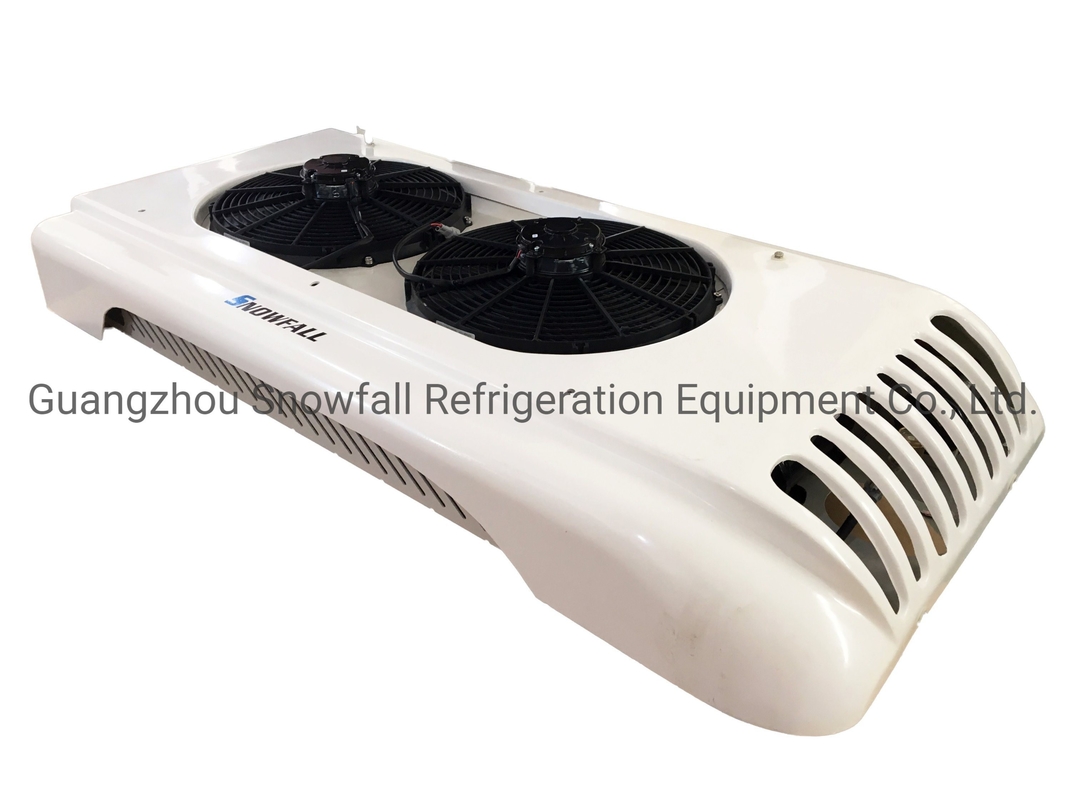

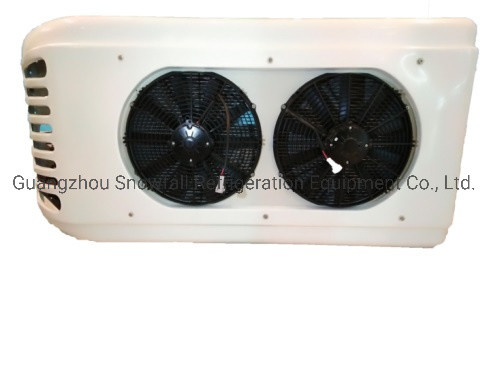

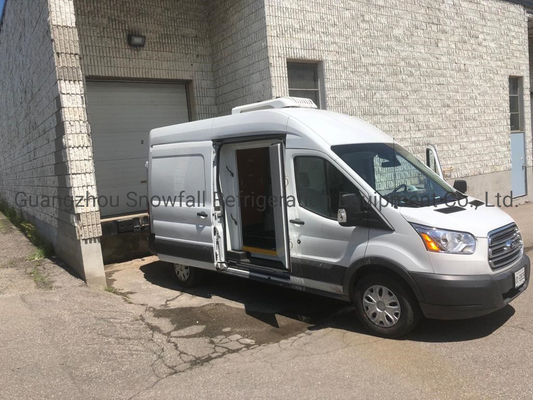

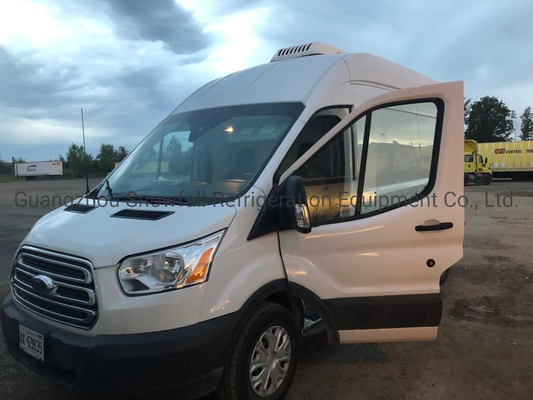

The SNOWFALL SF-T400 transport refrigeration unit is designed for light and medium trucks, offering reliable temperature control for perishable goods transportation. It can be engine-driven or equipped with an optional standby electric refrigeration system (DC220V/DC380V).
Key Applications
Ideal for transporting refrigerated frozen food, dairy products, vegetables, fruits, ice cream, and temperature-sensitive industrial electronic products. The unit maintains stable and reliable refrigeration performance throughout transportation.
Product Features
- Flexible power options: DC 12V or 24V with optional backup electric refrigeration system
- Compact and lightweight design with front-mounted condenser

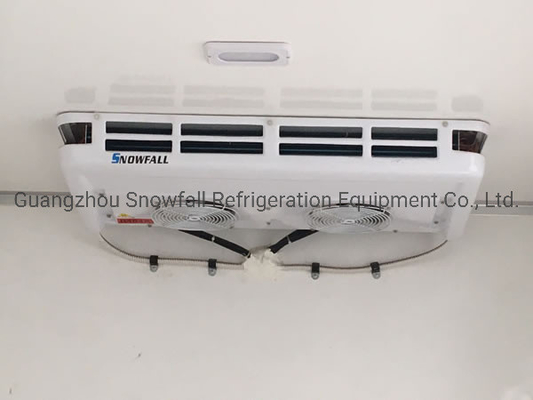

- Customizable evaporator installation to meet specific requirements
- Comprehensive coverage for refrigerated volumes from 14 m³ to 45 m³
- Energy-efficient operation with low maintenance requirements
- Environmentally friendly with low noise operation
Technical Specifications
| Model | SF-T400 |
|---|---|
| Applicable Temperature | +20°C to -18°C |
| Cooling Capacity (Environmental Temperature 35°C) | 0°C: 3900 -18°C: 2300 |
| Compressor | Model: QP16 Displacement: 163 cc/r |
| Condenser | Type: P.F. Fan Type: Axial fan (2 Fans x 1000m³/h) Voltage: DC 12V/DC24V |

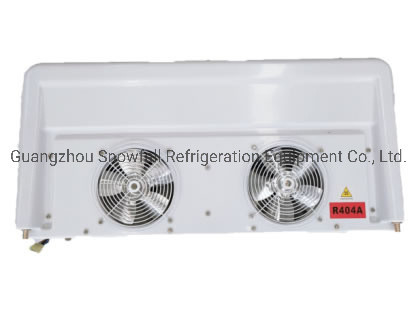

| Evaporator | Type: Inner screw tube and aluminium fin Fan Type: Axial fan (2 Fans x 800m³/h) Voltage: DC 12V/DC24V |
| Power Consumption | ≤ 33A (DC12V) ≤ 16.5A (DC24V) |
| Refrigerant | R-134a/ R-404a |
| Defrost Type | Automatically hot air defrost |
| Structure | Split direct drive unit |
| Dimensions & Weight | T400 Evaporator: 1270x580x170 mm (31.63 kg) T400 Condenser: 1280x640x1200 mm (31.91 kg) |
