Cargo Van Refrigeration Unit Refrigeration Equipment White Colour With Aluminium Fan
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | T-200 | Sealing Technology: | Patented O Sealing Technology |
|---|---|---|---|
| Design Base Environment: | 45 Degree C | Durability Range: | The Highest Level |
| Maintenance: | Lower The Cost Of Maintance | Transport Package: | Carton Filled With Paper Honeycomb |
| Trademark: | SNOWFALL | Origin: | Guangzhou, China |
| HS Code: | 8418692090 | Supply Ability: | 300 Sets Per Month |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Condensor Design: | Latest Exclusively For Refrigeration Unit |
| Customization: | Available | Customized Request | ||
| Highlight: | White Colour Cargo Van Refrigeration Unit,Cargo Van Refrigeration Equipment White,Van Refrigeration Unit With Aluminium Fan |
||
Product Description

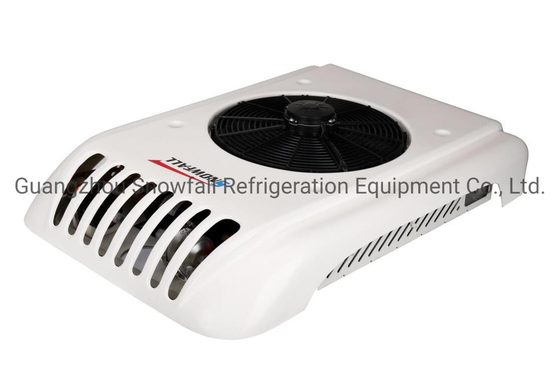

Cargo Van Refrigeration Unit - White with Aluminium Fan
Product Specifications
| Model NO. | T-200 |
|---|---|
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45 Degree C |
| Durability Range | The Highest Level |
| Maintenance | Lower The Cost of Maintenance |
| Transport Package | Carton Filled with Paper Honeycomb |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8418692090 |
| Supply Ability | 300 Sets Per Month |
| Service | OEM |
| Installation | Front, Roof, Under Mounting Type |
| Electric | Optional Electric Standby System |
| Colour | White |
| Fan Material | Aluminium Alloy |
| Condenser Design | Latest Exclusively for Refrigeration Unit |
| Customization | Available |
Product Images
Technical Specifications
Model:
Truck refrigeration unit SF-T328
Key Features:
- Keeps goods fresh & cooling
- Compressor: SD5H14
- Automatically hot air defrost
Applicable Temperature:
15°C to -20°C
Cooling Capacity:
At 0°C: 2800Kcal/3256W/11109BTU
At -18°C: 1750Kcal/2035W/6943BTU
At -18°C: 1750Kcal/2035W/6943BTU
Compressor Details:
Model: SD5H14 (Made in Singapore)
Type: Swash plate type
Displacement: 138 cc/r
Lubricating: POE
Type: Swash plate type
Displacement: 138 cc/r
Lubricating: POE
Condenser Specifications:
Type: P.F
Fan Type: Axial fan (2 fans × 1000m³/H)
Voltage: DC12V/DC24V
Fan Type: Axial fan (2 fans × 1000m³/H)
Voltage: DC12V/DC24V
Evaporator Specifications:
Type: Inner screw tube and aluminum fin
Fan Type: Axial fan (2 fans × 1000m³/H)
Voltage: DC12V/DC24V
Fan Type: Axial fan (2 fans × 1000m³/H)
Voltage: DC12V/DC24V
Power Consumption:
Between 33A (DC12V) and 16.5A (DC24V)
Refrigerant:
R-134a or R404a
Throttle Type:
External equalizer expansion valve
Defrost Type:
Automatically hot air defrost
Structure:
Split direct drive unit
Dimensions & Weight:
Evaporator: 1270×580×170mm (50"×23"×7") - 31.63KG
Condenser: 1000×900×170mm (39"×35"×7") - 33.87KG
Condenser: 1000×900×170mm (39"×35"×7") - 33.87KG
Our SNOWFALL refrigeration units are manufactured to the highest quality standards at competitive prices. With years of successful exports to multiple regions including North America, South America, Europe, Asia, Africa, and Oceania, our products have earned an excellent global reputation for reliability and performance.
Want to Know more details about this product
