45 Degree C Design Base Cooling System Refrigeration Units for Transport Van / Truck
  • name
  • name
  • name
  • name
  • name
  • name

45 Degree C Design Base Cooling System Refrigeration Units for Transport Van / Truck

Detail Information
Product Description
Detail Information
Model NO.:
SF-328
Service:
OEM
Installation:
Front, Roof, Under Mounting Type
Electric:
Optional Electric Standby System
Colour:
White
Fan Material:
Aluminium Alloy
Condenser Design:
Latest Exclusively For Refrigeration Unit
Sealing Technology:
Patented O Sealing Technology
Design Base Environment:
45 Degree C
Durability Range:
The Highest Level
Maintenance:
Lower The Cost Of Maintance
Transport Package:
Carton Filled With Paper Honeycomb
Trademark:
SNOWFALL
Origin:
Guangzhou, China
HS Code:
8418692090
Supply Ability:
400 Sets Per Month
After-sales Service:
Spare Part
Warranty:
1 Year
Certification:
ISO9000
Payload:
0
Emission Standard:
0
Transmission Type:
0
Customization:
Available | Customized Request
Highlight:

45 Degree C Truck Refrigeration Units

,

Transport Van White Refrigeration Units

Product Description
Hight quality Refrigeration units.  For keep product fresh.   Valuage!

Truck frigeration unit SF-328  Front mounting type,Roof mounting type.  The cooling temperature for +15 degree to -20 degree.
1) keep your goods fresh & cooling
 2) compressor: TM16
3) Automaticaly hot air defrost
Cooling System for Transport Van/Truck/Motorbike Truck Body

Cooling System for Transport Van/Truck/Motorbike Truck Body
Cooling System for Transport Van/Truck/Motorbike Truck BodyCooling System for Transport Van/Truck/Motorbike Truck BodyCooling System for Transport Van/Truck/Motorbike Truck Body
Unit Model SF-328
Applicable Temperature 15 °C  ~ - 20 °C
Cooling Capacity Environmental Temperature 35 °C
0 °C 2800Kcal/3256W/11109BTU
-18 °C 175Kcal/2035W/6943BTU
Compressor Model SD5S14
Type Swash plate type
Displacement(cc/r) 138
Ludricating POE
Condenser Type P.F.
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V /  DC 24V

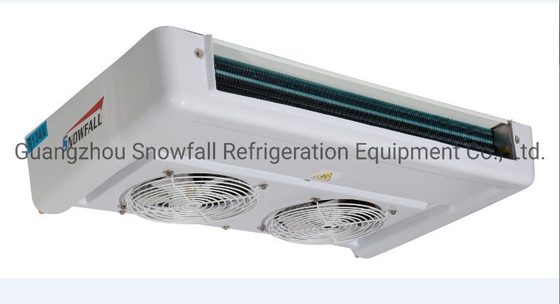

Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V /  DC 24V
Power Comsumption ≤33A(DC 12V)     ≤16.5A(DC 24V)
Throttle Type External equalizer expansion valve
Refrigerant R-134a/R-404a
Defrost Type Automatically hot air defrost
Structure Split direct drive unit
Electrical Standby System (optional part) AC 220V / AC 380V/ 415V
Dimensions(mm)    &                Net Weight(kg) SF-328 Evaporator 1270*580*170 31.63kg
SF-328 Condenser 1080*430*350 30kg
SF-T328 Condenser 1000*900*170 33.87kg
SF-U328 Condenser 890*270*380 25.03kg
