Low Noise Commercial Reefer Truck Refrigeration Unit / Delivery Van Refrigeration Unit
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | CE, ISO |
| Model Number: | SF-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 sets |
|---|---|
| Packaging Details: | Carton , Woodcase |
| Delivery Time: | 5 days |
| Supply Ability: | 100set/month |
|
Detail Information |
|||
| Highlight: | Low Noise Delivery Van Refrigeration Unit,Commercial Reefer Truck Refrigeration Unit |
||
|---|---|---|---|
Product Description

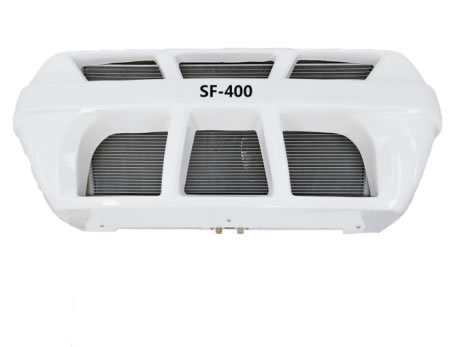

Low Noise Commercial Reefer Truck Refrigeration Unit / Delivery Van Refrigeration Unit
Product Overview
The SF-400 is a high-performance refrigeration unit designed for light and medium truck applications. Engine-driven with optional electric standby system (DC220V/DC380V), it provides reliable temperature control for transporting perishable goods including frozen foods, dairy products, produce, and sensitive industrial electronics.
Key Features
- Low noise operation for reduced environmental impact
- Energy efficient design with low maintenance requirements
- Stable and reliable refrigeration performance
- Flexible installation options including bottom-hanging condenser
- Environmentally friendly refrigerant options (R-134a/R-404a)
- Automatic hot air defrost system
Technical Specifications
| Model | SF-400 |
| Applicable Temperature Range | 15°C to -25°C |
| Cooling Capacity (35°C Environment) | 3900Kcal at 0°C 2300Kcal at -18°C |
| Compressor | Model: QP16 Displacement: 138cc/163cc |
| Condenser | Type: P.F. Fan: 3 Axial fans (1000m³/h each) Voltage: DC 12V/24V |
| Evaporator | Type: Inner screw tube with aluminum fin Fan: 2 Axial fans (1000m³/h each) Voltage: DC 12V/24V |
| Power Consumption | ≤ 30A (DC12V) ≤ 18A (DC24V) |
| Defrost System | Automatic hot air defrost |
| Structure | Split direct drive unit |
Dimensions & Weight
| Component | Dimensions (L x W x H mm) | Net Weight (kg) |
|---|---|---|
| SF-400 Evaporator | 640 × 1290 × 180 | 18.5 |
| SF-400 Condenser | 570 × 1260 × 435 | 27.1 |
| SF-U400 Condenser | 640 × 1290 × 180 | 30.2 |
| SF-U400 Condenser (Alternate) | 310 × 1020 × 460 | 15.8 |
| SF-T400 Condenser | 640 × 1290 × 180 | 18.5 |
| SF-T400 Condenser (Alternate) | 1290 × 660 × 200 | 30.2 |
Optional Electric Standby System
Available in AC 220V or AC 380V configurations for flexible power options when the engine is not running.
