Frozen Food Transport Truck Refrigeration Unit For Commercial Refrigerated Truck
Product Details:
| Place of Origin: | China |
| Brand Name: | SNWOFALL |
| Certification: | ISO , CE |
| Model Number: | SF-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 set |
|---|---|
| Packaging Details: | Carton , Woodcase |
| Delivery Time: | 2 days |
| Supply Ability: | 100 sets/ month |
|
Detail Information |
|||
| Temperature Range: | -18°C To +15°C | Voltage: | 12V/24V |
|---|---|---|---|
| Compressor Type: | Scroll | Refrigerant: | R134a/R-404a |
| Cooling Capacity: | 2900/hr | Power Source: | Directy Drive By Truck Engine |
| Condenser Type: | Condenser Fin Type | Dimensions: | 1080x430x350mm, 1000x580x170mm |
| Fan Type: | Direct Drive | Defrost Type: | Hot Gas |
| Evaporator Type: | Finned Tube And Aluminum Plate | Weight: | 55 Kg |
| Controller Type: | Electric Type | ||
| Highlight: | Commercial Refrigerated Truck Refrigeration Unit,Frozen Food Transport Refrigeration Unit |
||
Product Description
Frozen Food Transport Truck Refrigeration Unit For Commercial Refrigerated Truck
Key Specifications
| Temperature Range | -18°C to +15°C |
| Voltage | 12V/24V |
| Compressor Type | Scroll |
| Refrigerant | R134a/R-404a |
| Cooling Capacity | 2900/hr |
| Power Source | Direct drive by Truck engine |
| Condenser Type | Condenser fin type |
| Dimensions | 1080x430x350mm, 1000x580x170mm |
| Fan Type | Direct Drive |
| Defrost Type | Hot Gas |
| Evaporator Type | Finned Tube and Aluminum Plate |
| Weight | 55 kg |
| Controller Type | Electric type |

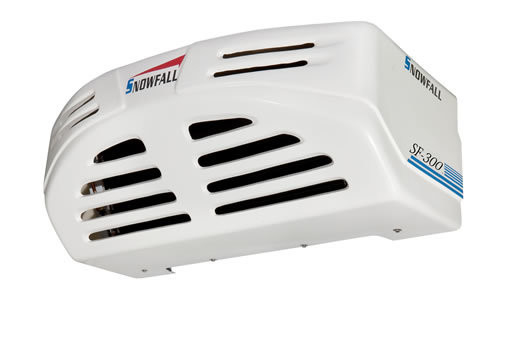

Product Overview

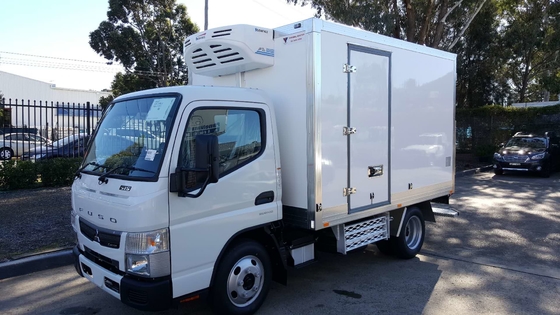

The SF-300 engine-driven transport refrigeration unit is designed for light truck refrigerated vehicles (7-23m³). It provides reliable temperature control for transporting frozen foods, dairy products, fresh produce, and ice cream at stable temperatures between -25°C to +15°C.
Key Features
- Flexible voltage options (DC 12V or 24V)
- Compact, lightweight design with front-mounted condenser
- Precisely matches refrigerated volume requirements (7-23m³)
- Energy efficient operation with low maintenance requirements
- Environmentally friendly refrigerant options (R-134a/R-404a)
- Optional electric standby system (AC 220V/380V)
Technical Specifications
Model: SF-300
Applicable Temperature: 15°C to -25°C
Cooling Capacity
| Environmental Temperature | Capacity |
|---|---|
| 35°C | 2900Kcal |
| 0°C | 2900Kcal |
| -18°C | 1800Kcal |
Compressor
Model: SD5S14
Displacement: 138cc
Condenser
Type: P.F.
Fan Type: Axial fan (2 Fans × 1000m³/h)
Voltage: DC 12V/24V

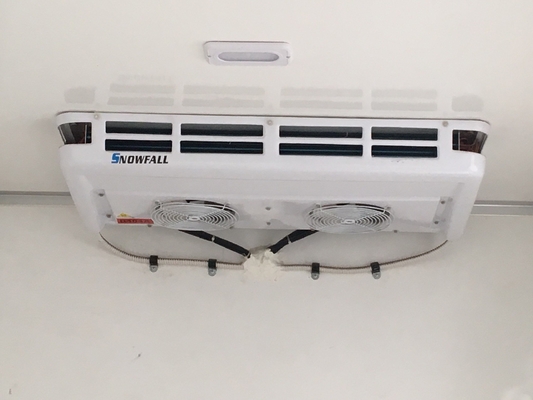

Evaporator
Type: Inner screw tube and aluminum fin
Fan Type: Axial fan (2 Fans × 1000m³/h)
Voltage: DC 12V/24V
Power Consumption: ≤30A (DC12V) / ≤18A (DC24V)
Dimensions & Weight
| Component | Dimensions (mm) | Weight (kg) |
|---|---|---|
| SF-300 Evaporator | 610×1010×180 | 18.5 |
| SF-300 Condenser | 520×1080×370 | 27.1 |
