Forzen Food Transport Refrigeration Units Commercial Truck Refrigeration Units 12V Or 24V
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | CE, ISO |
| Model Number: | SF-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 sets |
|---|---|
| Packaging Details: | Carton / woodcase |
| Delivery Time: | 10 days |
| Supply Ability: | 150set/ month |
|
Detail Information |
|||
| Evaporator Type: | Finned Tube And Plate | Defrost Type: | Hot Gas |
|---|---|---|---|
| Refrigerant: | R-404A/ R-134A | Temperature Range: | -20°C To +15°C |
| Controller Type: | Electric Type | Weight: | 38KG |
| Cooling Capacity: | 2100Kcal /hr | Dimensions: | 48kg |
| Compressor Type: | Scroll | Warranty: | 1 Year Limited Warranty |
| Voltage: | 12V Or 24V | Power Source: | Directy Drive Unit |
| Insulation Material: | Polyurethane Foam | Condenser Type: | Fin And Tube |
| Highlight: | 24V Food Transport Refrigeration Units,Forzen Food Transport Refrigeration Units,Commercial Truck Refrigeration Units 12V |
||
Product Description
Frozen Food Transport Refrigeration Units Commercial Truck Refrigeration Units 12V or 24V
Key Specifications
| Attribute | Value |
|---|---|
| Evaporator Type | Finned Tube and Plate |
| Defrost Type | Hot Gas |
| Refrigerant | R-404A/R-134A |
| Temperature Range | -20°C to +15°C |
| Controller Type | Electric type |
| Weight | 38KG |
| Cooling Capacity | 2100Kcal/hr |
| Compressor Type | Scroll |
| Warranty | 1 year limited warranty |
| Voltage | 12V or 24V |
| Power Source | Direct drive unit |
| Insulation Material | Polyurethane Foam |
| Condenser Type | Fin and Tube |
Product Overview

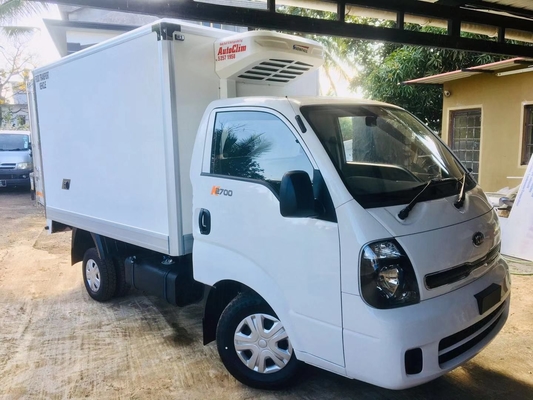

The SF-200 engine-driven transport refrigeration unit is designed for micro and light truck applications, making it ideal for transporting refrigerated food, dairy products, vegetables, and fruits. This reliable unit is suitable for refrigerated preservation vehicles with sizes ranging from 7 to 14 meters.
Key Features:
- Optional DC 12V or 24V operation
- Lightweight and compact design with front-mounted condenser
- Flexible evaporator installation options
- Comprehensive coverage for 7m to 14m refrigerated capacities
- Environmentally friendly R134a refrigerant
- Low operational costs with energy-efficient performance
- Minimal maintenance requirements and reduced noise levels
Technical Specifications
Model: SF-200
Operating Temperature Range: 15°C to -18°C
Cooling Capacity:
- At 35°C environmental temperature: 2100Kcal
- At 0°C: 2100Kcal
- At -18°C: 1210Kcal
Compressor Details:
- Model: SD5H11/5H14
- Displacement: 110cc/138cc
Evaporator Details:
- Type: Inner screw tube and aluminum fin
- Fan Type: Axial fan
- Number of Fans: 1 (1000m³/h capacity)
Electrical Specifications:
- Voltage: DC 12V/DC24V
- Power Consumption: ≤33A (DC12V) or ≤16.5A (DC24V)
Dimensions and Weight:
- SF-200 Evaporator: 610×790×180mm (16.5kg)
- SF-200 Condenser: 520×840×315mm (18.2kg)
- SF-T200 Condenser: 610×790×180mm (21.33kg)
- SF-T200 Condenser: 920×660×200mm (23.33kg)
Additional Features:
- Refrigerant: R-134a/R-404a
- Defrost Type: Automatic hot air defrost
- Structure: Split direct drive unit
- Optional electric standby system available
