Rooftop Mounted Truck Refrigeration Units for Chiller / Dairy Food Transport
  • name
  • name
  • name
  • name

Rooftop Mounted Truck Refrigeration Units for Chiller / Dairy Food Transport

MOQ: 1 set
Standard Packaging: Woodcase/ Carton
Delivery Period: 5
Supply Capacity: 100 set/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SNOWFALL
Certification
CE, ISO
Model Number
SF-318
Product_name:
SF-318
Warranty:
1 Year
Temperature Range:
-20°F To 50°F
Voltage:
DC 12V/DC24V
Fan Type:
Axial Fan
Structure:
Split Direct Drive Unit
Noise Level:
75 DB(A)
Refrigerant Type:
R-134a
Minimum Order Quantity:
1 set
Packaging Details:
Woodcase/ Carton
Delivery Time:
5
Supply Ability:
100 set/Month
Highlight:

Rooftop Mounted Truck Refrigeration Units

,

Food Transport Truck Refrigeration Units

Product Description

product details

Suitable for 3~8m of mini refrigerated and frozen models to drive the refrigerating unit by automobile engine

It is the first choice for supermarket and catering distribution. Its refrigeration performance is very stable and reliable. SNOWFALL recommends you choose between a classic engine drive unit and a brand new backup built-in unit. Covering all container volumes, one or more of this series will meet your needs.

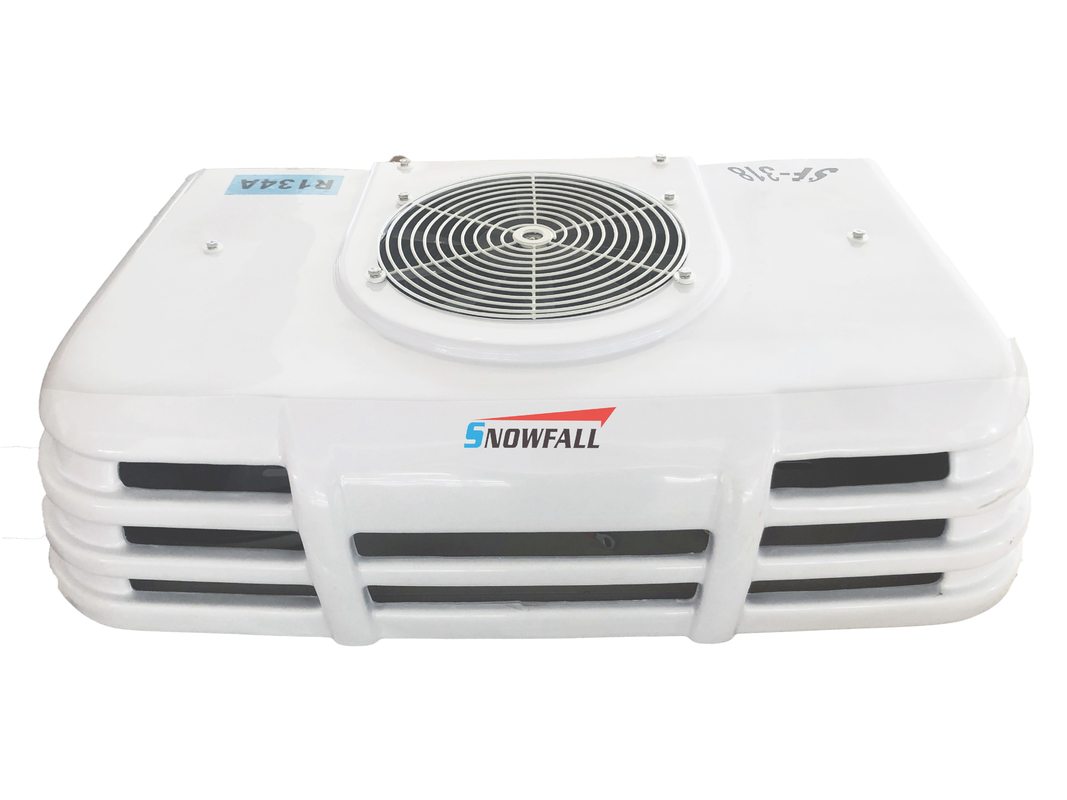

Driven transport refrigerating unit SF-318 is a reliable refrigerating unit for miniature thermal insulation cars with the dimensions of 3~-8m.

Features:

1. Optional DC 12V or 24V for your choice.

2. The whole transport refrigerating unit is light and compact, the condenser is in front, and the evaporator can be installed as required.

3. This series of models fully covers the freezing capacity ranging from 3 m to 8 m and accurately matches its freezing volume from per square meter.

4. Each SNOWFALL will be featured with low cost, low maintenance, low noise, energy saving and environmental protection.

Model

SF – 318

Applicable Temperature (℃)

20 ~ -5

Cooling Capacity

Environmental Temperature

35°C

0°C

1800Kcal / 2093W / 7142BTU

Compressor

Model

SD5H14

Displacement(cc/r)

138

Condenser

Type

P.F.

Fan Type

Axial fan

Number of Fan

1 Fan x 800m3/h

Voltage

DC 12V/DC24V

Evaporator

Type

Inner screw tube and aluminum fin

Fan Type

Axial fan

Number of Fan

1 Fan x1000m3/h

Voltage

DC 12V/DC24V

Power Consumption

≤ 22A (DC12V)
≤ 11A (DC24V)

Refrigerant

R-134a

Structure

Split direct drive unit

Dimensions (mm) /Net weight

SF-318 Evaporator

L610 xW790 x H180

18.22kg

SF-318 Condenser

L485xW 825x H195

16.3kg

SF- U318 Condenser

L610 x W790 x H180

18.22kg

SF- U318 Condenser

L650 x W240 x H370

10.3kg

Electric Standby system(optional part)
