White Transport Refrigeration Units Chilled Unit Refrigerated System for Small Trucks
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-200 | Sealing Technology: | Patented O Sealing Technology |
|---|---|---|---|
| Design Base Environment: | 45 Degree C | Durability Range: | The Highest Level |
| Maintenance: | Lower The Cost Of Maintance | Transport Package: | Carton Filled With Paper Honeycomb |
| Trademark: | SNOWFALL | Origin: | Guangzhou, China |
| HS Code: | 8418692090 | Supply Ability: | 300 Sets Per Month |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Condensor Design: | Latest Exclusively For Refrigeration Unit |
| Customization: | Available | Customized Request | ||
| Highlight: | White Transport Refrigeration Units,Small Trucks Transport Refrigeration Units,Truck Chilled Unit Refrigerated System |
||
Product Description

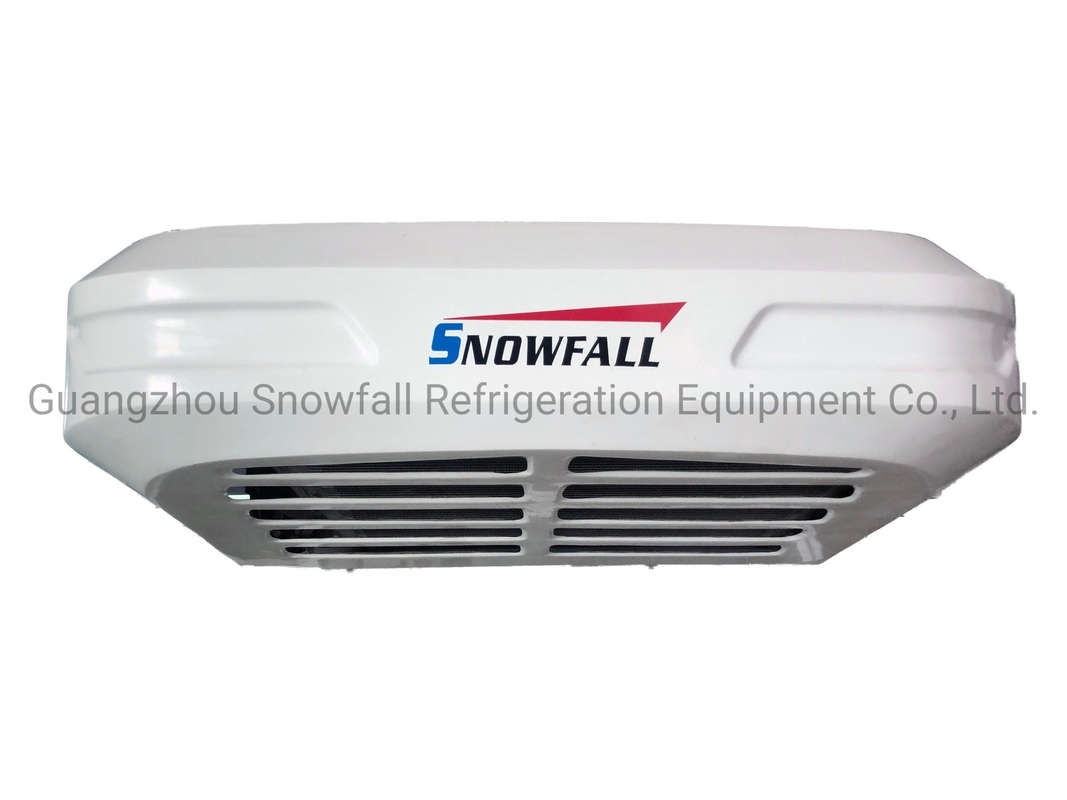

White Transport Refrigeration Units - SF-200 Model
Premium Chilled Unit Refrigerated System for Small Trucks
Product Overview

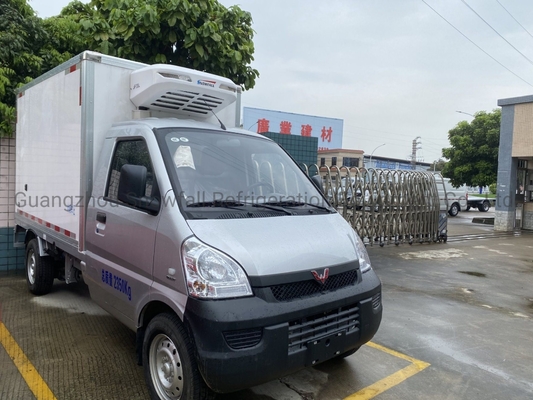

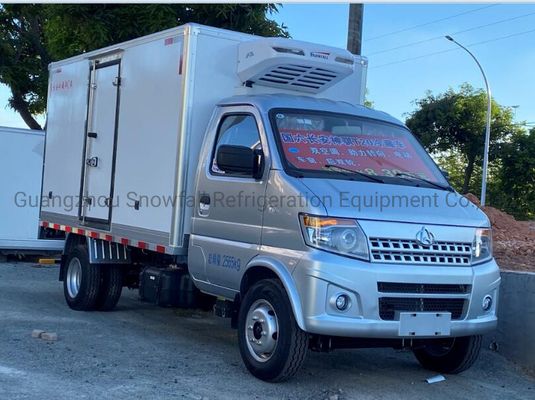

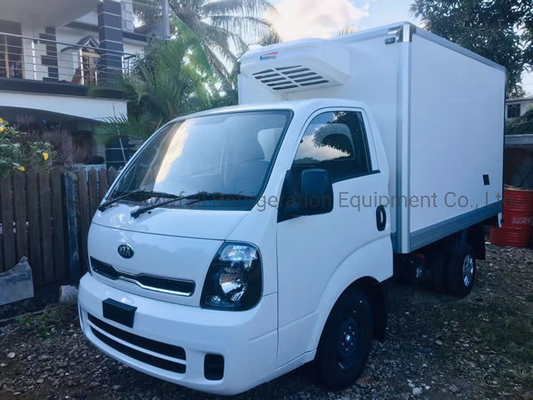

The SF-200 is an engine-driven transport refrigeration unit designed for micro and light trucks. Ideal for transporting refrigerated food, dairy products, vegetables, and fruits, this unit combines efficiency with reliability.
Key Features
- Patented O Sealing Technology for enhanced durability
- Designed for operation in environments up to 45°C
- Optional DC 12V or 24V electrical systems
- Lightweight and compact design with front-mounted condenser
- Low maintenance, low noise, energy-saving operation
- Available with optional electric standby system
- Customizable mounting options (front, roof, or under mounting)
Technical Specifications
Model Number:
SF-200
Applicable Temperature Range:
15°C to -18°C
Cooling Capacity at 0°C:
2,100 Kcal (at 35°C environmental temperature)
Cooling Capacity at -18°C:
1,210 Kcal (at 35°C environmental temperature)
Compressor:
SD5H11/5H14 (110cc/138cc displacement)
Condenser:
P.F. type with 1 axial fan (1000m³/h)

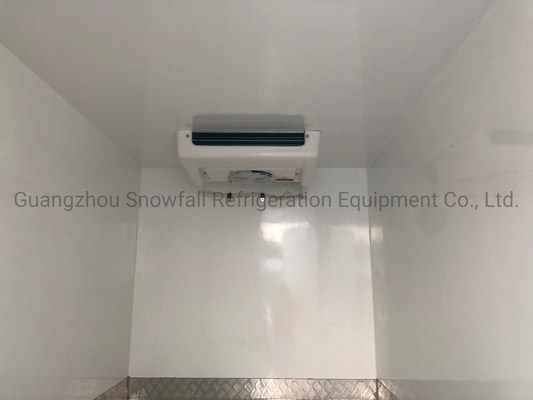

Evaporator:
Inner screw tube and aluminum fin with 1 axial fan (1000m³/h)
Refrigerant:
R-134a/R-404a
Defrost System:
Automatically hot air defrost
Dimensions & Weight
| Component | Dimensions (mm) | Net Weight (kg) |
|---|---|---|
| SF-200 Evaporator | L610 × W790 × H180 | 16.5 kg |
| SF-200 Condenser | L520 × W840 × H315 | 18.2 kg |
| SF-T200 Condenser | L610 × W790 × H180 | 21.33 kg |
| SF-T200 Condenser | L920 × W660 × H200 | 23.33 kg |
Additional Information
Transport Package:
Carton filled with paper honeycomb
Supply Ability:
300 sets per month
Service:
OEM available
Origin:
Guangzhou, China
Our SNOWFALL refrigeration units are exported worldwide and enjoy great reputation in markets including North America, South America, Europe, Asia, Africa, and Oceania. We guarantee high quality products at competitive prices.
Want to Know more details about this product
