Exclusive Condenser Design for Refrigeration Unit Truck System Lower Maintenance Cost
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-328 | Installation: | Front, Roof, Under Mounting Type |
|---|---|---|---|
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Condensor Design: | Latest Exclusively For Refrigeration Unit |
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintance |
| Transport Package: | Carton Filled With Paper Honeycomb | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 300 Sets Per Month | Certification: | ISO9000 |
| Transmission Type: | Automatic | Bearing Capacity: | Large |
| Car Type: | Truck | Condition: | New |
| Service: | OEM | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description
Exclusive Condenser Design for Refrigeration Unit Truck System
Engineered to lower maintenance costs with patented sealing technology and durable aluminum alloy construction.
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | SF-328 |
| Installation | Front, Roof, Under Mounting Type |
| Electric | Optional Electric Standby System |
| Colour | White |
| Fan Material | Aluminium Alloy |
| Condensor Design | Latest Exclusively for Refrigeration Unit |
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45 Degree C |
| Durability Range | The Highest Level |
| Maintenance | Lower The Cost of Maintenance |
| Transport Package | Carton Filled with Paper Honeycomb |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8418692090 |
| Supply Ability | 300 Sets Per Month |
| Certification | ISO9000 |
| Transmission Type | Automatic |
| Bearing Capacity | Large |
| Car Type | Truck |
| Condition | New |
| Service | OEM |
| Customization | Available |
Technical Specifications
Truck Refrigeration Unit SF-T328
- Maintains optimal freshness and cooling for transported goods
- Compressor: SD5H14
- Automatically hot air defrost system
Performance Specifications
- Applicable Temperature: 15°C to -20°C
- Cooling Capacity (at 0°C): 2800 Kcal / 3256W / 11109 BTU
- Cooling Capacity (at -18°C): 1750 Kcal / 2035W / 6943 BTU
Component Details
- Compressor: Model: SD5H14 (Made in Singapore), Swash plate type, Displacement: 138 cc/r, Lubrication: POE
- Condenser: Type: P.F., Fan: Axial (2 fans × 1000m³/H), Voltage: DC12V/DC24V

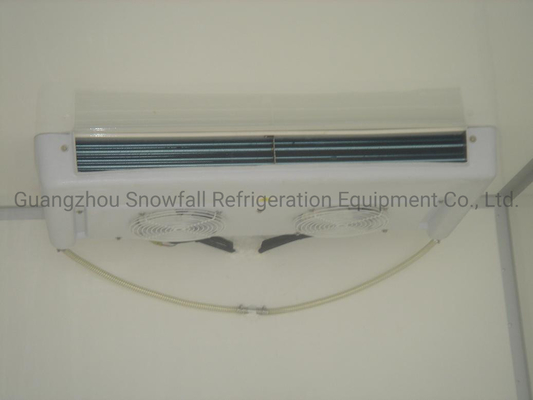

- Evaporator: Type: Inner screw tube and aluminum fin, Fan: Axial (2 fans × 1000m³/H), Voltage: DC12V/DC24V
- Power Consumption: Between 33A (DC12V) and 16.5A (DC24V)
- Refrigerant: R-134a or R404a
- Throttle Type: External equalizer expansion valve
- Defrost Type: Automatically hot air defrost
- Structure: Split direct drive unit
Dimensions & Weight
- Evaporator: 1270 × 580 × 170mm (50" × 23" × 7"), 31.63kg
- Condenser: 1000 × 900 × 170mm (39" × 35" × 7"), 33.87kg
Global Market Presence
Our high-quality refrigeration units are exported worldwide and enjoy excellent reputation in:
- North & South America
- Eastern & Western Europe
- Southeast Asia
- Africa
- Oceania
- Middle East
- Eastern Asia
