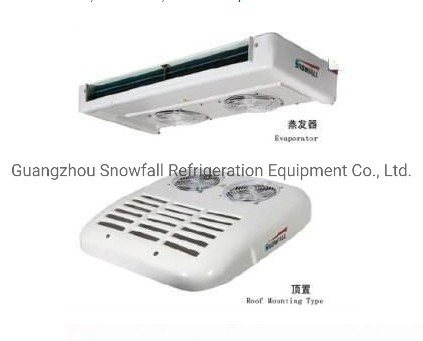

DC12V DC24V Transport Van Refrigeration Unit With Patented O Sealing Technology

Detail Information
Product Description
Detail Information
Sealing Technology:
Patented O Sealing Technology
Design Base Environment:
45 Degree C
Durability Range:
The Highest Level
Maintenance:
Lower The Cost Of Maintance
Transport Package:
Carton Filled With Paper Honeycomb
Trademark:
SNOWFALL
Origin:
Guangzhou, China
HS Code:
8418692090
Supply Ability:
300 Sets Per Month
Service:
OEM
Installation:
Front, Roof, Under Mounting Type
Electric:
Optional Electric Standby System
Colour:
White
Fan Material:
Aluminium Alloy
Condensor Design:
Latest Exclusively For Refrigeration Unit
Customization:
Available | Customized Request
Highlight:

customized truck refrigeration unit

,

customized transport refrigeration units

,

under mounting truck refrigeration unit

Product Description

Transport Keep Fresh System Van Unit
Transport Keep Fresh System Van Unit
Transport Keep Fresh System Van Unit
Transport Keep Fresh System Van Unit
Transport Keep Fresh System Van Unit

Specifications

Trcuk refrigeration unit SF-T328

1) keep your goods fresh & cooling
2) compressor:SD5H14
3) Automaticaly hot air defrost

Trcuk refrigeration unit SF-T328

Main specification

1. Applicable Temperature : 15~-20


2. Cooling Capacity:(at 0°c) 2800Kcal/3256W/11109BTU
Cooling Capacity: (at -18°c) 1750Kcal/2035W/6943BTU


3. Compressor:
1) Model: SD5H14 Made in Singapore
2) Type: Swash plate type
3) Displacement(cc/r):138
4) Ludricating:POE


4. Condenser:
1) Type:P.F
2) Fan Type:Axial fan (2fans*1000m3/H)
3) Voltage:DC12V/DC24V



5. Evaporator:

1) Type:inner screw tube and aluminum fin
2) Fan type:Axial fan
3) Number of fan 2fan*1000m3/h

4) Voltage:DC12V/DC24V


6. Power consuption:Between 33A(DC12V)and 16.5A(DC24V)

7. Refrigerant:R-134a or R404a

8. Throttle Type:External equalizer expansion valve

9. Defrost Type:Automatically hot air defrost

10. Structure:Spilt direct drive unit

11. Dimensions(mm)  and Weight(kg)

1)  Evaporator:1270*580*170mm(50"*23"*7") and 31.63KG

2) Condenser :1000*900*170mm(39"*35"*7") and 33.87KG





Rest assure that our products are high quality best price and reliable.Our products have been exported to many countries for years and enjoyed great reputation .Our oversea markets are as follows:North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe etc.
