Durability Range The Highest Level Freezer Unit for Long-Lasting Cooling Performance
  • name
  • name
  • name
  • name
  • name

Durability Range The Highest Level Freezer Unit for Long-Lasting Cooling Performance

Detail Information
Product Description
Detail Information
Model NO.:
SF-550
Condensor Design:
Latest Exclusively For Refrigeration Unit
Sealing Technology:
Patented O Sealing Technology
Design Base Environment:
45 Degree C
Durability Range:
The Highest Level
Maintenance:
Lower The Cost Of Maintance
Transport Package:
Carton Filled With Paper Honeycomb
Trademark:
SNOWFALL
Origin:
Guangzhou, China
HS Code:
8418692090
Supply Ability:
350 Sets Per Month
Condition:
New
Service:
OEM
Installation:
Front, Roof, Under Mounting Type
Electric:
Optional Electric Standby System
Colour:
White
Fan Material:
Aluminium Alloy
Customization:
Available | Customized Request
Highlight:

customized truck refrigeration unit

,

customized transport refrigeration units

,

under mounting truck refrigeration unit

Product Description

Freezer Box Cooling System Freezer Unit
Freezer Box Cooling System Freezer Unit
Freezer Box Cooling System Freezer Unit

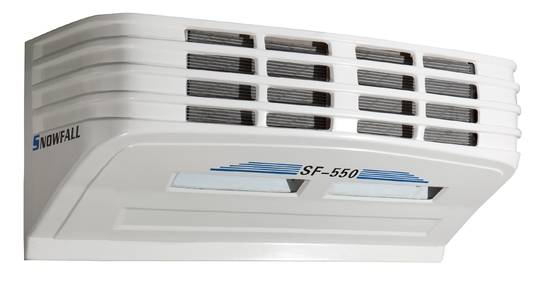

Truck refrigeration unit SF-550

1)Integral unit
2)use latest design compresser
3)Automatically defrost
4)Compressor: UX-200
5Trcuk refrigeration unit SF-550

1. Applicable Temperature
2. Cooling Capacity
(under -18°c) 3100Kcal/3605W/12300BTU

3. Compressor
1)Model UX-200
2)Displacement(cc/r): 210

4. Condenser:
1)Type: P. F
2)Fan Type: Axial fan (2fans*1000m3/h)
3)Voltage: DC12V/DC24V

5. Evaporator:
1)Type: Inner screw tube and aluminum fin
2)Fan type: Axial fan
3)Number of fan 3fan*1000m3/h
4)Voltage: DC12V/DC24V


6. Power consuption: Between 36A(DC12V) and 20A(DC24V)

7. Refrigerant: R-134A or R404A

8. Defrost Type: Automatically hot air defrost

9. Structure: Integral unit

10. Electrical Standby system: AC 220V/AC 380V/415V

11. Dimensions(mm)1665*760*480mm( 65.6"*30"*19")

12. Total Weight(kg): 106kgs




Our products have been exported to many countries for years and enjoyed great reputation.

Our oversea markets are as follows: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe etc



Freezer Box Cooling System Freezer Unit
Freezer Box Cooling System Freezer Unit

Unit Model SF-550
Applicable Temperature 25 °C  ~ - 20 °C
Cooling Capacity Environmental Temperature 35 °C
0 °C 5000Kcal/5815W/19841BTU
-18 °C 3100Kcal/3605W/12300BTU
Compressor Model UX200
Displacement(cc/r) 200
Condenser Type P.F.
Fan Type Axial Fan
Number of Fan 2 Fans * 1000m ³/h
Voltage DC 12V /  DC 24V
Evaporator Type Inner screw tube and aluminium fin
Fan Type Axial Fan
Number of Fan 3 Fans * 1000m ³/h
Voltage DC 12V /  DC 24V
Power Comsumption ≤36A(DC 12V)     ≤20A(DC 24V)
Refrigerant R-134a/R-404a
Defrost Type Automatically hot air defrost
Structure Integral unit
Electrical Standby System (optional part) AC 220V / AC 380V/ 415V
Dimensions(mm)                1665*760*480
Net Weight(kg) 106kg
