Latest Exclusively for Refrigeration Unit Condensor Design Van Cooler System Food Freezer
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | T400 | Sealing Technology: | Patented O Sealing Technology |
|---|---|---|---|
| Design Base Environment: | 45 Degree C | Durability Range: | The Highest Level |
| Maintenance: | Lower The Cost Of Maintance | Transport Package: | Carton Filled With Paper Honeycomb |
| Trademark: | SNOWFALL | Origin: | Guangzhou, China |
| HS Code: | 8418692090 | Supply Ability: | 300 Sets Per Month |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Condensor Design: | Latest Exclusively For Refrigeration Unit |
| Customization: | Available | Customized Request | ||
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description
Latest Exclusively for Refrigeration Unit Condenser Design Van Cooler System Food Freezer
Product Specifications
| Model NO. | T400 |
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45 Degree C |
| Durability Range | The Highest Level |
| Maintenance | Lower The Cost of Maintenance |
| Transport Package | Carton Filled with Paper Honeycomb |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8418692090 |
| Supply Ability | 300 Sets Per Month |
| Service | OEM |
| Installation | Front, Roof, Under Mounting Type |
| Electric | Optional Electric Standby System |
| Colour | White |
| Fan Material | Aluminium Alloy |
| Condenser Design | Latest Exclusively for Refrigeration Unit |
| Customization | Available |

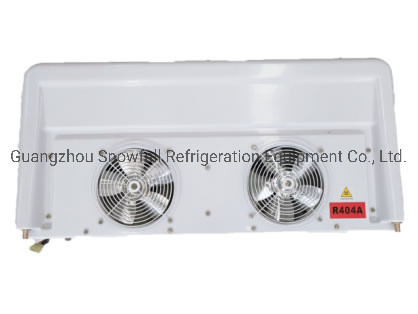

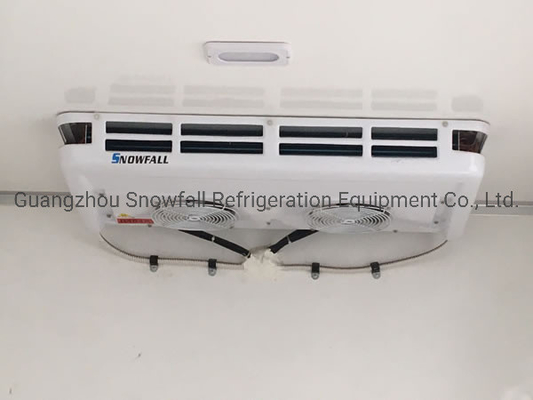

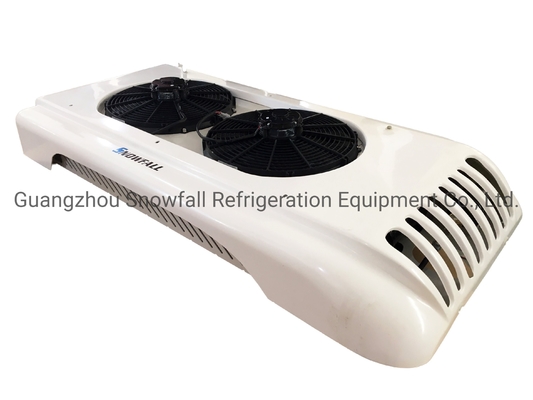

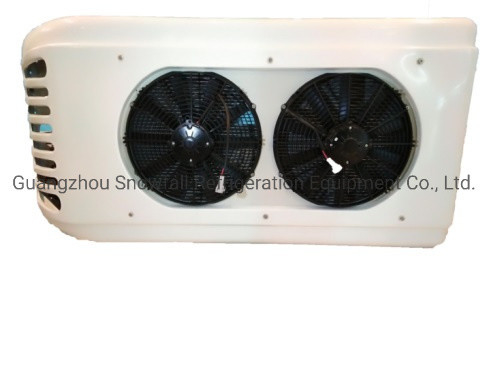

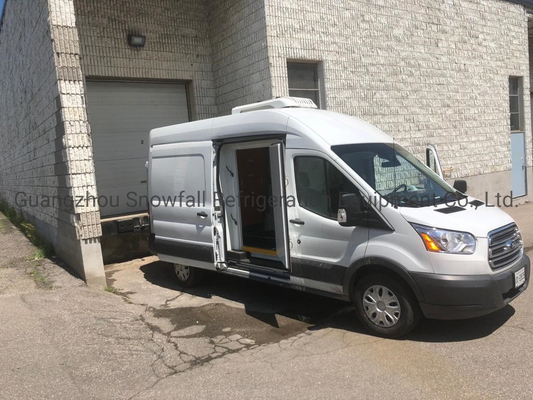

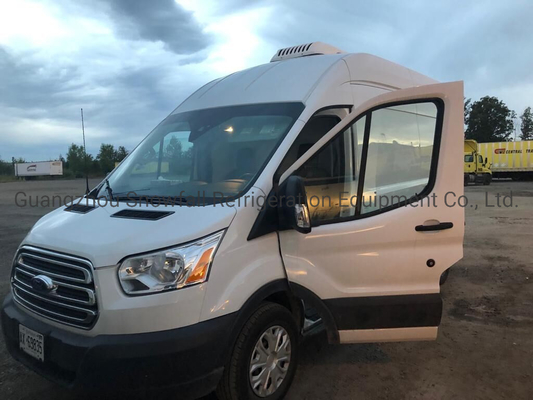

Product Images
Product Description
The SNOWFALL T400 refrigeration unit is designed for light and medium truck applications, offering reliable temperature control for frozen food, dairy products, vegetables, fruits, ice cream, and industrial electronic products.
This versatile unit can be engine-driven or equipped with an optional standby electric refrigeration system (DC220V/DC380V). The SF-400 model is specifically designed for refrigerated trucks with 14-18m³ compartments and features an innovative bottom-hanging condenser design.
Key Features
- Flexible power options: DC 12V or 24V operation with optional backup electric refrigeration system
- Compact and lightweight design with front-mounted condenser and customizable evaporator installation
- Comprehensive coverage for refrigerated volumes from 14 m³ to 45 m³
- Engineered for low operational costs, minimal maintenance, quiet operation, and energy efficiency
- Patented O Sealing Technology for enhanced durability
- Aluminium alloy fan construction for longevity
Technical Specifications
| Basic Parameters | |
|---|---|
| Model | SF-T400 |
| Applicable Temperature | +20°C to -18°C |
| Cooling Capacity (Environmental Temperature 35°C) | |
| 0°C | 3900 |
| -18°C | 2300 |
| Compressor Details | |
| Model | QP16 |
| Displacement | 163 cc |
| Condenser Specifications | |
| Type | P.F. |
| Fan Type | Axial fan |
| Number of Fans | 2 Fans x 1000m³/h |
| Voltage | DC 12V/DC24V |
| Evaporator Specifications | |
| Type | Inner screw tube and aluminium fin |
| Fan Type | Axial fan |
| Number of Fans | 2 Fans x 800m³/h |
| Voltage | DC 12V/DC24V |
| Additional Specifications | |
| Power Consumption | ≤ 33A (DC12V) ≤ 16.5A (DC24V) |
| Refrigerant | R-134a/ R-404a |
| Defrost Type | Automatically hot air defrost |
| Structure | Split direct drive unit |
| Dimensions & Weight | |
| T400 Evaporator | 1270x580x170 mm / 31.63kg |
| T400 Condenser | 1280x640x1200 mm / 31.91kg |
Want to Know more details about this product
