45 Degree C Environment Big Truck Cooler Unit with Patented O Sealing Technology
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-700 | Condensor Design: | Latest Exclusively For Refrigeration Unit |
|---|---|---|---|
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintance |
| Transport Package: | Carton Filled With Paper Honeycomb | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 350 Sets Per Month | Condition: | New |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description

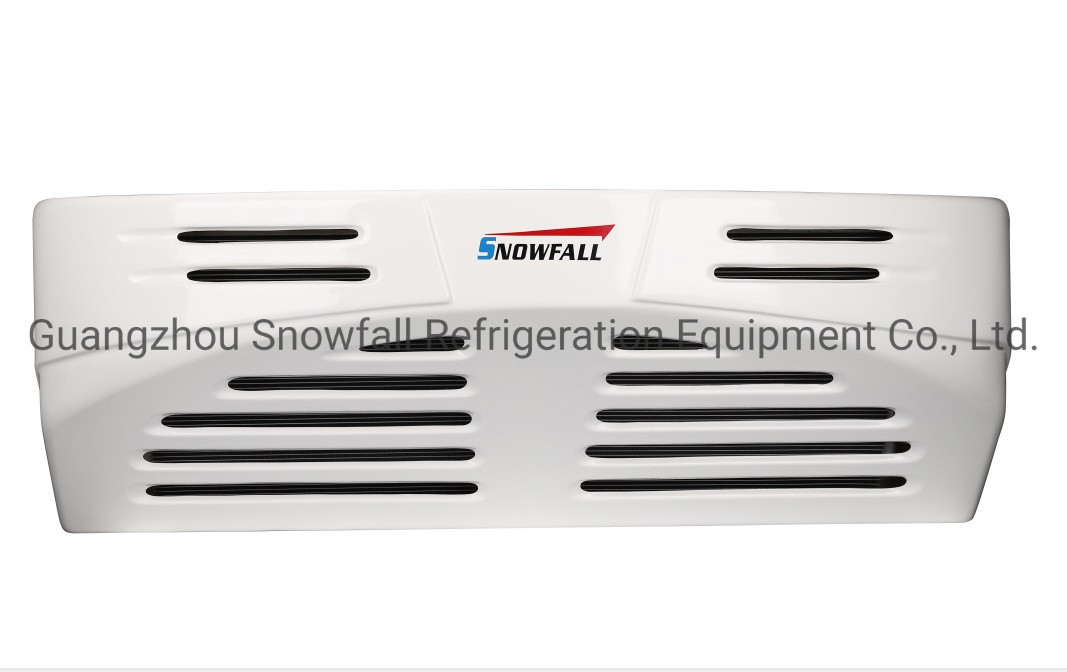

45°C Environment Big Truck Cooler Unit with Patented O Sealing Technology
| Model NO. | SF-700 |
| Condensor Design | Latest Exclusively for Refrigeration Unit |
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45 Degree C |
| Durability Range | The Highest Level |
| Maintenance | Lower The Cost of Maintenance |
| Transport Package | Carton Filled with Paper Honeycomb |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8418692090 |
| Supply Ability | 350 Sets Per Month |
| Condition | New |
| Service | OEM |
| Installation | Front, Roof, Under Mounting Type |
| Electric | Optional Electric Standby System |
| Colour | White |
| Fan Material | Aluminium Alloy |
| Customization | Available |
Product Overview

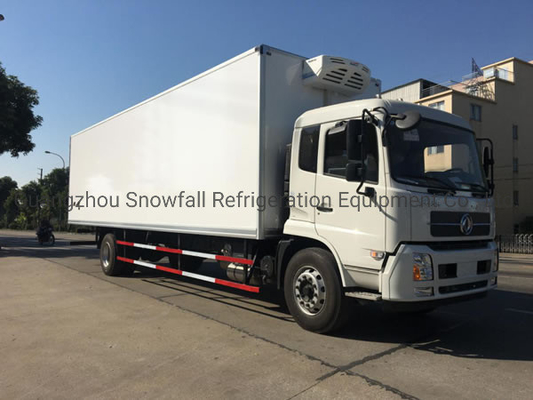

The SF-700 is designed for refrigerated vehicles of light trucks and above, delivering exceptional refrigeration performance for volumes of 14-23m³. This unit is ideal for transporting frozen food, dairy products, fruits, ice cream, fresh agricultural products, and industrial electronic products with stable and reliable refrigeration.
Key Features
- Optional DC 12V or 24V power systems with backup electric refrigeration (DC220V/DC380V available)
- Lightweight and compact design with front-mounted condenser
- 12-inch large aluminum alloy vane motor (imported from Taiwan)

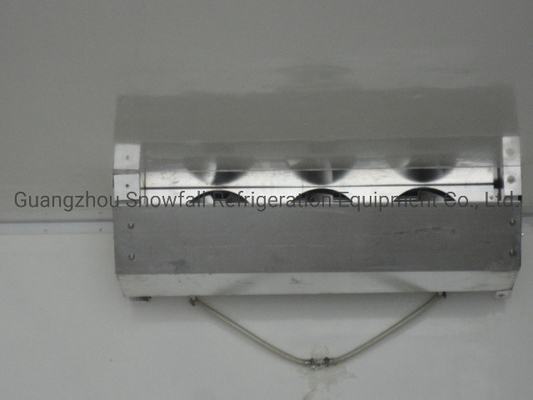

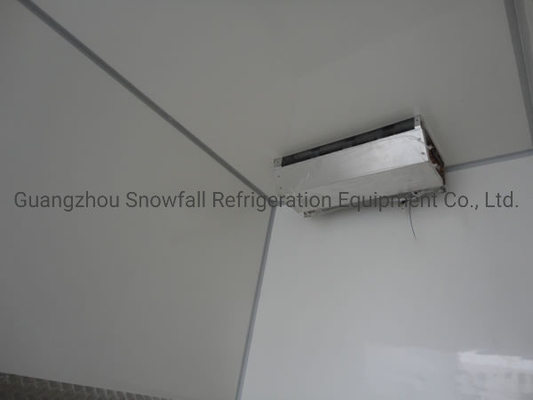

- Flexible evaporator installation options
- Comprehensive coverage for freezing capacities from 14m³ to 56m³
- Low maintenance, low noise, energy efficient, and environmentally friendly
Technical Specifications
| Model SF-700 | |
|---|---|
| Applicable Temperature | 15°C to -20°C |
| Cooling Capacity (Environmental Temperature 35°C) | |
| 0°C | 5800 Kcal |
| -18°C | 3250 Kcal |
| Component Specifications | |
| Compressor Model | QP16/QP21 |
| Compressor Displacement | 215cc |
| Condenser Type | P.F. |
| Condenser Fan | 3 Axial fans (1000m³/h each) |
| Voltage | DC 12V/DC 24V |

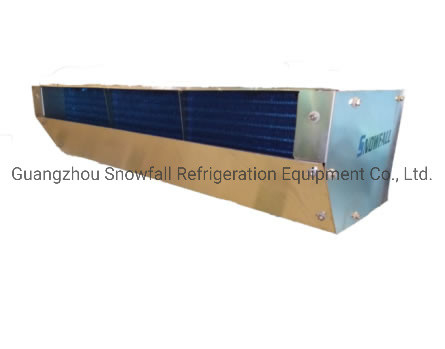

| Evaporator Type | Inner screw tube and aluminum fin |
| Evaporator Fan | 3 Axial fans (1000m³/h each) |
| Power Consumption | ≤37.5A (DC12V), ≤22.5A (DC24V) |
| Refrigerant | R-134a/R-404a |
| Defrost Type | Automatically hot air defrost |
| Structure | Split direct drive unit |
| Dimensions & Weight | |
| SF-700 Evaporator | 570×1240×240mm (31.4kg) |
| SF-700 Condenser | 570×1260×435mm (54.3kg) |
| Electric Standby System | AC 220V / AC 380V (optional) |
