Patented O Sealing Technology Low MOQ Refrigeration Unit for Truck Body Electric Optional
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-318 | Condensor Design: | Latest Exclusively For Refrigeration Unit |
|---|---|---|---|
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintanance |
| Transport Package: | Carton Filled With Paper Honeycomb | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 300 Sets Per Month | Condition: | New |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description
Patented O Sealing Technology Low MOQ Refrigeration Unit for Truck Body Electric Optional
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | SF-318 |
| Condensor Design | Latest Exclusively for Refrigeration Unit |
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45 Degree C |
| Durability Range | The Highest Level |
| Maintenance | Lower The Cost of Maintenance |
| Transport Package | Carton Filled with Paper Honeycomb |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8418692090 |
| Supply Ability | 300 Sets Per Month |
| Condition | New |
| Service | OEM |
| Installation | Front, Roof, Under Mounting Type |
| Electric | Optional Electric Standby System |
| Colour | White |
| Fan Material | Aluminium Alloy |
| Customization | Available |
Product Overview
SF-318

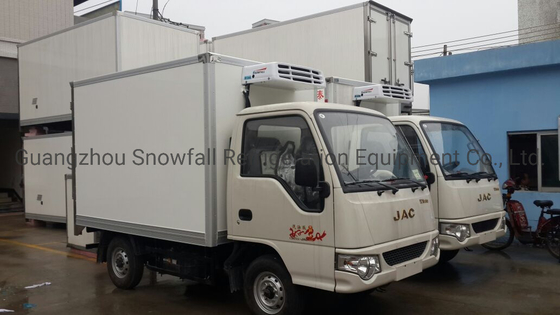

Suitable for 3~8m mini refrigerated and frozen truck models, this unit is driven by automobile engine and is the ideal choice for supermarket and catering distribution. Known for its stable and reliable refrigeration performance, the SF-318 series covers all container volumes with options for classic engine drive or new backup built-in units.
Key Features
- Optional DC 12V or 24V power configuration
- Lightweight and compact design with front-mounted condenser
- Flexible evaporator installation options
- Precise cooling capacity matching for 3m to 8m truck volumes
- Low operational costs with minimal maintenance requirements
- Energy efficient and environmentally friendly operation
- Low noise design for improved working environment
Technical Specifications
| Unit Model | SF-318 |
|---|---|
| Applicable Temperature | 20°C ~ -5°C |
| Cooling Capacity (35°C environment) | 0°C: 1800Kcal/2093W/7142BTU |
| Compressor | Model: SD5S14 Displacement: 138cc/r |
| Condenser | Type: P.F. Fan: 1 Axial Fan (800m³/h) |
| Voltage Options | DC 12V / DC 24V |
| Evaporator | Type: Inner screw tube and aluminium fin Fan: 1 Axial Fan (1000m³/h) |
| Power Consumption | ≤22A (DC 12V) ≤11A (DC 24V) |
| Refrigerant | R-134a |
| Structure | Split direct drive unit |
| Optional Electrical Standby System | AC 220V / AC 380V/415V |
| Dimensions & Weight |
SF-318 Evaporator: 790×590×170mm (18.34kg) SF-318 Condenser: 800×480×180mm (17.88kg) SF-T318 Condenser: 870×700×150mm (21.33kg) |
