45 Degree C Design Base Cooler Condensing Unit and Evaporator Air Cooler Refrigerator
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-600 | Condensor Design: | Latest Exclusively For Refrigeration Unit |
|---|---|---|---|
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintance |
| Transport Package: | Carton Filled With Paper Honeycomb | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 350 Sets Per Month | Condition: | New |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description
45 Degree C Design Base Cooler Condensing Unit and Evaporator Air Cooler Refrigerator
Product Specifications
| Model NO. | SF-600 |
| Condensor Design | Latest Exclusively for Refrigeration Unit |
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45 Degree C |
| Durability Range | The Highest Level |
| Maintenance | Lower The Cost of Maintenance |
| Transport Package | Carton Filled with Paper Honeycomb |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8418692090 |
| Supply Ability | 350 Sets Per Month |
| Condition | New |
| Service | OEM |

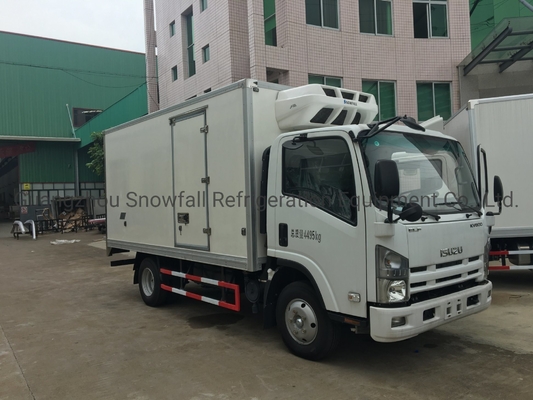

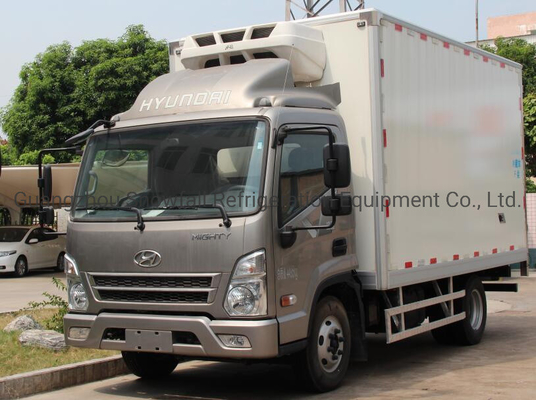

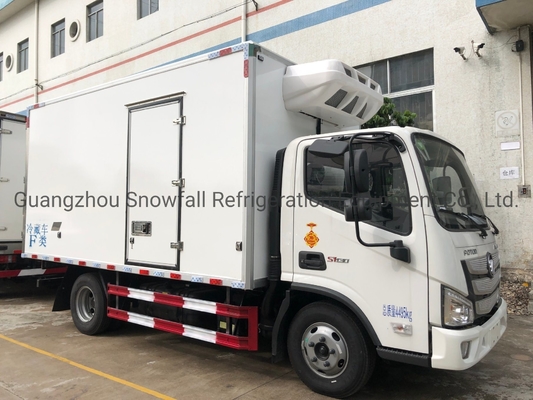

| Installation | Front, Roof, Under Mounting Type |
| Electric | Optional Electric Standby System |
| Colour | White |
| Fan Material | Aluminium Alloy |
| Customization | Available |
Product Overview
Key Features
- Optional DC 12V or 24V power systems with backup electric refrigeration options (DC220V/DC380V)
- Lightweight and compact design with front-mounted condenser and flexible evaporator installation
- Comprehensive model range covering refrigerated capacities from 14m³ to 49m³
- Patented O sealing technology for enhanced durability
- Engineered for 45°C base environment operation
- Low maintenance, low noise, energy efficient and environmentally friendly
Technical Specifications
| Unit Model SF-600 | |
|---|---|
| Applicable Temperature | +15°C ~ -20°C |
| Cooling Capacity (35°C environment) |
0°C: 6000Kcal/6978W/23809BTU
-20°C: 3700Kcal/4303W/14682BTU
|
| Compressor |
Model: QP-21
Displacement: 200 cc
|
| Condenser |
Type: P.F.
Fan Type: Axial fan (2 fans × 1100m³/h)
Voltage: DC12V/DC24V
|
| Evaporator |
Type: Inner screw tube and aluminum fin
Fan Type: Axial fan (3 fans × 800m³/h)
Voltage: DC12V/DC24V
|
| Power Consumption |
≤ 48A (DC12V)
≤ 29.6A (DC24V)
|
| Refrigerant | R-404a |
| Defrost Type | Automatically hot air defrost |
| Structure | Split direct drive unit |
| Dimensions & Weight |
SF-600 Evaporator: 1250×490×360mm (39.5kg)
SF-600 Condenser: 1410×630×495mm (30kg)
|
Global Reach
Our SNOWFALL refrigeration units have been exported worldwide for years, earning an excellent reputation in:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, Eastern Asia, and Western Europe.
Want to Know more details about this product
