Customized Request 45 Degree C Environment Refrigeration Unit for Refrigerated Trucks
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-600 | Condensor Design: | Latest Exclusively For Refrigeration Unit |
|---|---|---|---|
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintance |
| Transport Package: | Carton Filled With Paper Honeycomb | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 350 Sets Per Month | Condition: | New |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description

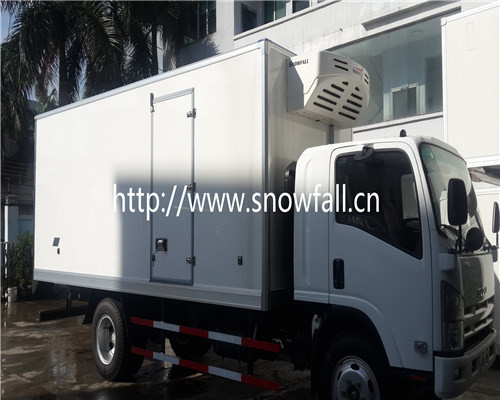

Customized 45°C Environment Refrigeration Unit for Refrigerated Trucks
Key Features
- Patented O Sealing Technology for superior performance
- Designed specifically for 45°C environments
- Highest durability rating in its class
- Reduced maintenance costs
- Multiple installation options (Front, Roof, Under Mounting)
- Optional electric standby system available
- Customization options to meet specific requirements
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | SF-600 |
| Condenser Design | Latest exclusive design for refrigeration units |
| Sealing Technology | Patented O Sealing Technology |
| Design Base Environment | 45°C |
| Durability Range | The highest level |
| Maintenance | Lower maintenance costs |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
Technical Performance
Applicable Temperature:
+15°C to -20°C
Cooling Capacity (35°C environment):
0°C: 6000Kcal/6978W/23809BTU
-20°C: 3700Kcal/4303W/14682BTU
-20°C: 3700Kcal/4303W/14682BTU
Compressor:
Model QP-21, 200 cc displacement
Condenser:
P.F. type with 2 axial fans (2200m³/h total)

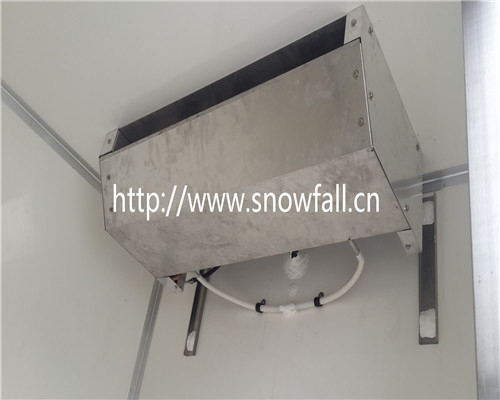

Evaporator:
Inner screw tube and aluminum fin with 3 axial fans (2400m³/h total)
Power Consumption:
≤48A (DC12V) / ≤29.6A (DC24V)
Refrigerant:
R-404a
Dimensions & Weight:
Evaporator: 1250×490×360mm (39.5kg)
Condenser: 1410×630×495mm (30kg)
Condenser: 1410×630×495mm (30kg)
Our SNOWFALL refrigeration units have been exported worldwide for years, earning an excellent reputation in markets including:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, Eastern Asia, and Western Europe.
Available with OEM services and customization options to meet your specific refrigeration requirements.
