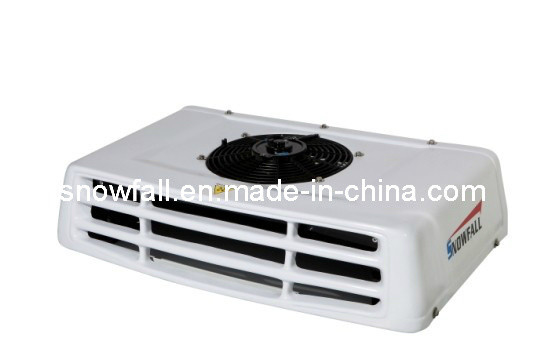

Truck Refrigeration Units SF-318 White Colour and Advanced Cooling System for Trucks

Products

Truck Refrigeration Units SF-318 White Colour and Advanced Cooling System for Trucks

Detail Information

Product Description

Detail Information

Model NO.:

SF-318

Condensor Design:

Lastest Exclusively For Refrigeration Unit

Sealing Technology:

Patented O Sealing Technology

Durability Range:

The Highest Level

Maintenance:

Lower The Cost Of Maintance

Condition:

New

Application Fields:

Refrigerated Trucks

Transport Package:

Carton

Trademark:

SNOWFALL

Origin:

Guangzhou, China

HS Code:

8418692090

Supply Ability:

5000 Sets/ Year

Type:

Cooling System

Service:

OEM

Installation:

Front, Roof, Under Mounting Type

Electric:

Optional Electric Standby System

Colour:

White

Fan Material:

Aluminium Alloy

Customization:

Available | Customized Request

Highlight:

white colour truck refrigeration units

white colour truck mounted refrigeration units

customized truck refrigeration units

Product Description

Truck refrigeration units SF-318

1)latest design condensor,
2) O good sealing,
3)Compressor Model:SD5H14
4)R-134a refrigera

Trcuk refrigeration unit SF-318
Main specification

1.Applicable Temperature

2.Cooling Capacity :0°C 1800Kcal/2093W/714BTU

3.Compressor
1)Model:SD5H14
2)Displacement(cc/r) :138

4.Condenser:
1).Type:P.F.
2)Fan Type:Axial fan
3)Number of fan:1fan*800m3/h
4)Voltage:DC12V/DC24V

5.Evaporator:

1)Type:inner screw tube and aluminum fin

2)Fan type:Axial fan

3)Number of fan 1fan*1000m3/h

4)Voltage:DC12V/DC24V

6.Power consuption:Between 22A(DC12V)and 11A(DC24V)

7.Refrigerant:R-134a

8.Structure:Spilt direct drive unit

9.Dimensions(mm)/Net weight:of Condenser :800*480*180mm(31"*19"*7")/17.88kgs

10.Dimensions(mm)/Net weight:of Evaporator :790*590*170mm( 31"*23"*6.7")/18.34kgs

Our products have been exported to many countries for years and enjoyed great reputation .

Our oversea markets are as follows:North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe etc.

Truck Refrigeration Units (SF-318) for Trucks with Best Quality

Unit Model		SF-318
Applicable Temperature		20 °C ~ - 5 °C
Cooling Capacity	Environmental Temperature	35 °C
	0 °C	1800Kcal/2093W/7142BTU
Compressor	Model	SD5S14
	Displacement(cc/r)	138
Condenser	Type	P.F.
	Fan Type	Axial Fan
	Number of Fan	1 Fans * 800m ³/h
	Voltage	DC 12V / DC 24V
Evaporator	Type	Inner screw tube and aluminium fin
	Fan Type	Axial Fan
	Number of Fan	1 Fans * 1000m ³/h
	Voltage	DC 12V / DC 24V
Power Comsumption		≤22A(DC 12V) ≤11A(DC 24V)
Refrigerant		R-134a
Structure		Split direct drive unit
Electrical Standby System (optional part)		AC 220V / AC 380V/ 415V
Dimensions(mm) & Net Weight(kg)	SF-318 Evaporator	790590170	18.34kg
	SF-318 Condenser	800480180	17.88kg
	SF-T318 Condenser	870700150	21.33kg
