White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-328 | Condenser Design: | Lastest Exclusively For Refrigeration Unit |
|---|---|---|---|
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintance |
| Transport Package: | Carton Filled With Paper Honeycomb | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 400 Sets Per Month | Certification: | ISO9000 |
| Service: | OEM | Installation: | Front, Roof, Under Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,under mounting truck refrigeration unit |
||
Product Description

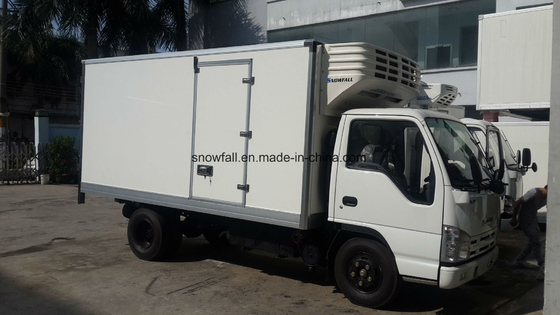

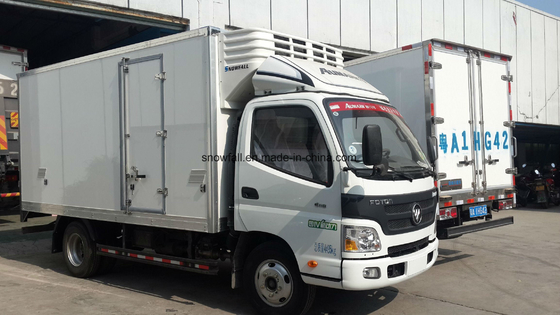

White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
Product Overview
The SF-328 refrigeration unit is designed for optimal temperature control in refrigerated and freezer trucks, featuring patented sealing technology and durable construction for reliable performance in demanding environments.
Key Features
- Patented O Sealing Technology for superior insulation
- Designed for operation in environments up to 45°C
- Highest durability level in its class
- Reduced maintenance costs
- Multiple mounting options (front, roof, under mounting)
- Optional electric standby system available
- Customization options upon request
Technical Specifications
Model Number: SF-328
Operating Temperature Range: 15°C to -20°C
Compressor Model: SD5S14 (Swash plate type)
Refrigerant: R-134a/R-404a
Defrost System: Automatic hot air defrost
Voltage Options: DC 12V / DC 24V
Power Consumption: ≤33A (DC 12V) / ≤16.5A (DC 24V)
Performance Data
| Environmental Temperature | Cooling Capacity |
|---|---|
| 35°C at 0°C | 2800Kcal/3256W/11109BTU |
| 35°C at -18°C | 175Kcal/2035W/6943BTU |
Dimensions & Weight
| Component | Dimensions (mm) | Net Weight (kg) |
|---|---|---|
| SF-328 Evaporator | 1270×580×170 | 31.63 |
| SF-328 Condenser | 1080×430×350 | 30 |
| SF-T328 Condenser | 1000×900×170 | 33.87 |
| SF-U328 Condenser | 890×270×380 | 25.03 |
Certification & Support
ISO9000 certified | OEM services available | Supply capacity: 400 sets per month
