The Highest Level Durability Transport Refrigeration Unit with Aluminium Alloy Fan
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SF-550 | Condensor Design: | Lastest Exclusively For Refrigeration Unit |
|---|---|---|---|
| Sealing Technology: | Patented O Sealing Technology | Design Base Environment: | 45 Degree C |
| Durability Range: | The Highest Level | Maintenance: | Lower The Cost Of Maintance |
| Transport Package: | Plywood Package | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8418692090 |
| Supply Ability: | 350 Sets Per Month | Condition: | New |
| Service: | OEM | Installation: | Front Mounting Type |
| Electric: | Optional Electric Standby System | Colour: | White |
| Fan Material: | Aluminium Alloy | Customization: | Available | Customized Request |
| Highlight: | customized truck refrigeration unit,customized transport refrigeration units,front mounting truck refrigeration unit |
||
Product Description

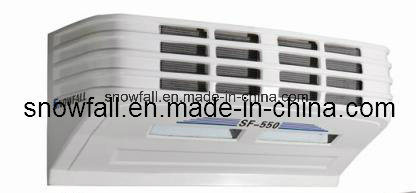

Highest Level Durability Transport Refrigeration Unit with Aluminium Alloy Fan
Product Overview
The SF-550 transport refrigeration unit delivers exceptional durability and performance with its aluminum alloy fan construction and patented sealing technology. Designed for demanding environments up to 45°C, this unit offers reliable temperature control for transport applications.
Key Features
- Integral unit design for maximum efficiency
- Latest generation compressor technology
- Automated defrost system
- Patented O Sealing Technology for enhanced performance
- Aluminum alloy fan construction for durability
- Optional electric standby system available
- Customization options to meet specific requirements
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | SF-550 |
| Condenser Design | Latest Exclusive for Refrigeration Unit |
| Design Base Environment | 45°C |
| Transport Package | Plywood Package |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| Supply Ability | 350 Sets Per Month |
| Installation | Front Mounting Type |
| Color | White |
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Temperature | 25°C ~ -20°C |
| Cooling Capacity (35°C) | 0°C: 5000Kcal/5815W/19841BTU -18°C: 3100Kcal/3605W/12300BTU |
| Compressor | Model: UX200 Displacement: 200cc/r |
| Condenser | Type: P.F. Fan Type: Axial Fan (2 Fans × 1000m³/h) |
| Evaporator | Type: Inner screw tube and aluminum fin Fan Type: Axial Fan (3 Fans × 1000m³/h) |
| Voltage | DC 12V / DC 24V |
| Power Consumption | ≤36A (DC 12V) / ≤20A (DC 24V) |
| Refrigerant | R-134a/R-404a |
| Defrost Type | Automatically hot air defrost |
| Dimensions | 1665 × 760 × 480 mm |
| Net Weight | 106 kg |
Customization Available: The SF-550 transport refrigeration unit can be customized to meet specific requirements, including optional electrical standby systems (AC 220V / AC 380V/415V).
