Customizable CKD Radial Tire FRP Truck Body Dry Cargo Truck Box 1-10t Load Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | ISO , SGS, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flat pack |
| Delivery Time: | 10 days |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Horsepower: | 150-250hp | Engine Capacity: | 4-6L |
|---|---|---|---|
| Heat Preservation Type: | Foam Material | Tire Certification: | ISO |
| Tire Design: | Radial | Condition: | New |
| Colour: | White Or Other Colour | Transport Package: | CKD |
| Specification: | As Per Request | Trademark: | SNOWFALL |
| Origin: | China | HS Code: | 8707901000 |
| Supply Ability: | 120 Set | Emission Standard: | Euro 5 |
| Power: | Diesel | Load Capacity: | 1-10t |
| Drive Wheel: | 4×2 | Shape: | Single Bridge |
| Seats: | ≤5 | Customization: | Available | Customized Request |
| Highlight: | Radial Tire FRP Truck Body,Customizable CKD Dry Cargo Truck Box,Customizable Dry Cargo Truck Box |
||
Product Description
Customizable CKD Radial Tire FRP Truck Body Dry Cargo Truck Box
Product Specifications
| Load Capacity | 1-10t |
| Horsepower | 150-250hp |
| Engine Capacity | 4-6L |
| Heat Preservation | Foam Material |
| Tire Certification | ISO |
| Tire Design | Radial |
| Color Options | White or Other Colors |
| Emission Standard | Euro 5 |
| Power Type | Diesel |
| Customization | Available |
Construction Details

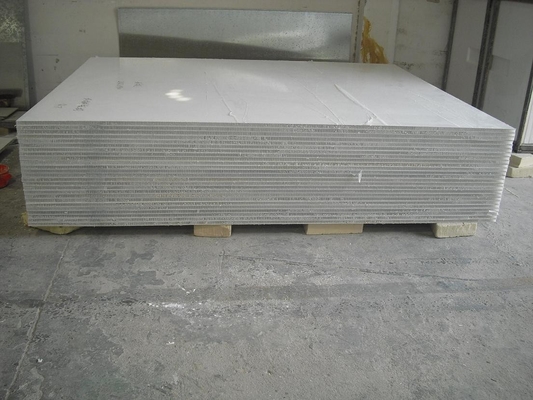

- Glass reinforced fiber plastic + PP honeycomb cellcore + glass reinforced fiber plastic
- GFRP thickness: 1mm to 2.5mm
- Surface options: Anti-slip pattern and diamond pattern

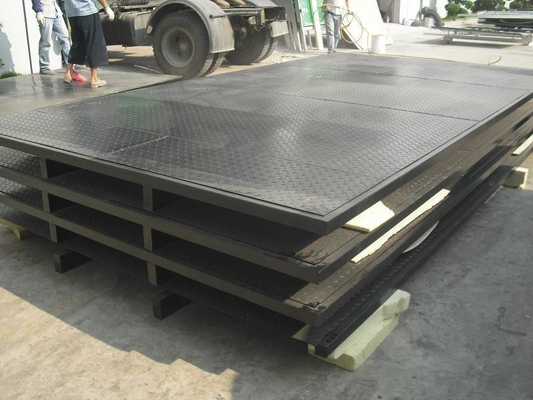

- Floor: 3mm steel checkered plate

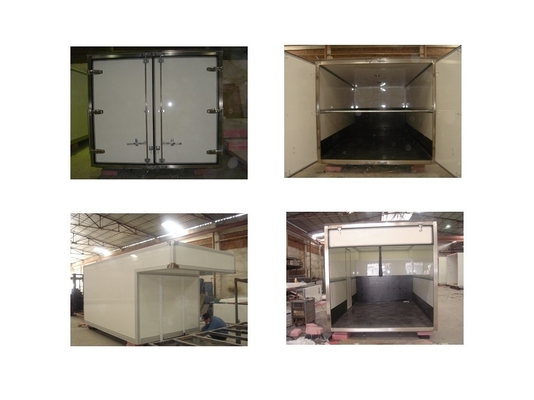

- Doors: Double rear doors with stainless steel frame and locking
Key Features
- Lightweight design saves energy and reduces costs
- High strength construction
- Waterproof and flame retardant
- Excellent weather resistance against moisture and aging
- Effective shock absorption
- Easy to fabricate and install
- Superior sound insulation
- Multiple color options for decoration
- Environmentally friendly materials
- Low electrical and thermal conductivity

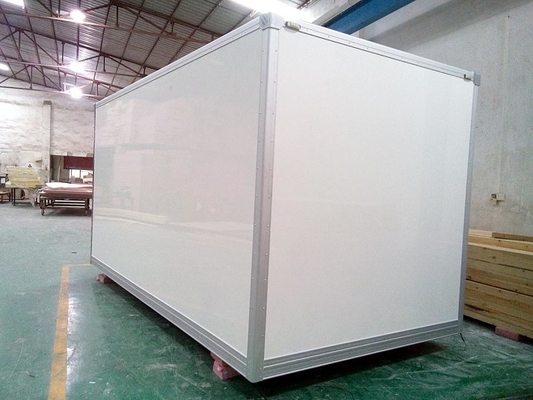

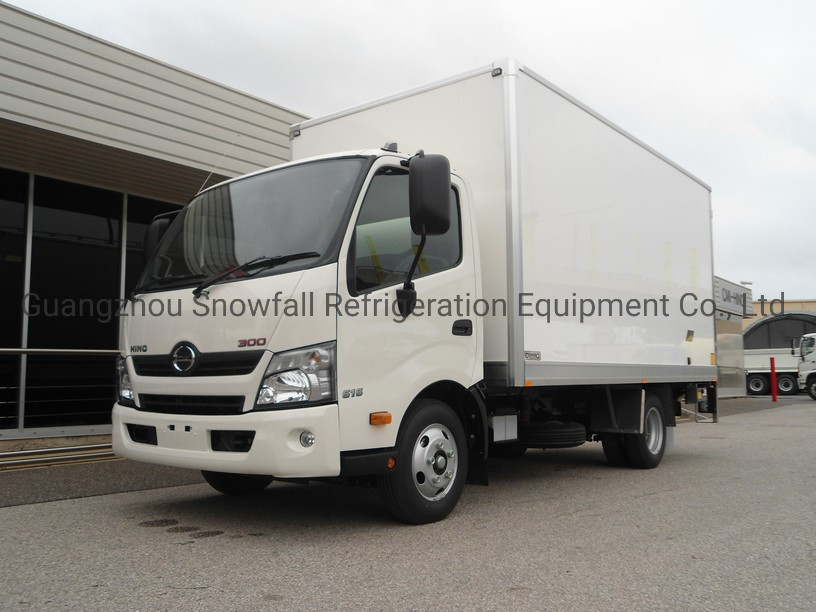

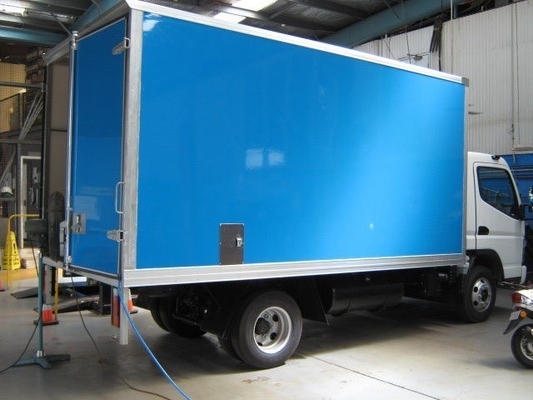

Product Images
Standard Dimensions
| Dimension | Model 1 | Model 2 | Model 3 |
|---|---|---|---|
| Length (mm) | 3160 | 4380 | 6250 |
| Width (mm) | 1740 | 2000 | 2450 |
| Height (mm) | 1650 | 1920 | 2300 |
Panel Specifications
| Panel Type | FRP + Honeycomb + FRP | ||
| Roof Panel | 1.5mm + 18mm + 1.5mm | ||
| Front Panel | 1.5mm + 18mm + 1.5mm | ||
| Wall Panel | 1.5mm + 18mm + 1.5mm | ||
| Floor Panel | 3mm Steel Checked Plate | ||
| Rear Door | 1 pair of 20mm thick FRP plywood swing doors | ||
* Custom sizes available from 2m to 9m (please specify requirements)
