Customization FRP Honeycomb Dry Truck Body With Foam Material Heat Preservation Type
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | ISO , SGS, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flat pack |
| Delivery Time: | 10 days |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Horsepower: | 150-250hp | Engine Capacity: | 4-6L |
|---|---|---|---|
| Heat Preservation Type: | Foam Material | Tire Certification: | ISO |
| Tire Design: | Radial | Condition: | New |
| Colour: | White Or Other Colour | Transport Package: | CKD |
| Specification: | As Per Request | Trademark: | SNOWFALL |
| Origin: | China | HS Code: | 8707901000 |
| Supply Ability: | 120 Set | Emission Standard: | Euro 5 |
| Power: | Diesel | Load Capacity: | 1-10t |
| Drive Wheel: | 4×2 | Shape: | Single Bridge |
| Seats: | ≤5 | Customization: | Available | Customized Request |
| Highlight: | FRP Honeycomb Dry Truck Body,Customization Dry Truck Body |
||
Product Description
Customization FRP Honeycomb Dry Truck Body With Foam Material Heat Preservation Type
Product Specifications
| Horsepower | 150-250hp |
| Engine Capacity | 4-6L |
| Heat Preservation Type | Foam Material |
| Tire Certification | ISO |
| Tire Design | Radial |
| Condition | New |
| Colour | White or Other Colour |
| Transport Package | CKD |
| Specification | as per request |
| Trademark | SNOWFALL |
| Origin | China |
| HS Code | 8707901000 |
| Supply Ability | 120 Set |
| Emission Standard | Euro 5 |
| Power | Diesel |
| Load Capacity | 1-10t |
| Drive Wheel | 4×2 |
| Shape | Single Bridge |
| Seats | ≤5 |
| Customization | Available |
Product Description
Foam Material Heat Preservation Type Cargo Honeycomb CKD Dry Truck Body Customization
Construction Materials
- FRP with PP Honeycomb panel for roof, side wall, front, rear door
- Floor: Steel checkered plate

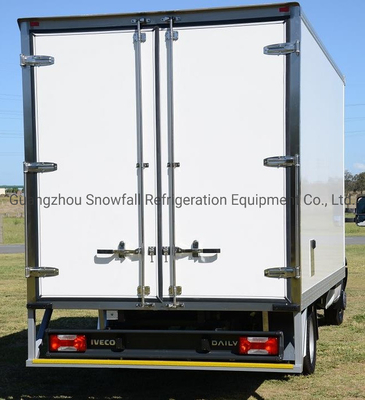

- Door: Double rear door with stainless steel door frame and locking
- Available in CKD or assembled type
Technical Specifications
- Glass reinforced fiber plastic + PP honeycomb cellcore + glass reinforced fiber plastic
- Thickness of GFRP: 1mm to 2.5mm
- Surface: Anti-slip pattern and diamond pattern
Key Features
- Light-weight design saves energy and cost
- High strength construction
- Water-proof and flame retardant
- Excellent weather resistance against moisture and aging
- Effective shock absorption
- Easy to fabricate
- Sound insulation properties
- Colorful and decorative options
- Environmentally friendly materials
- Low electrical & thermal conductivity
Standard Dimensions
| Dimension | 3160 | 4380 | 6250 |
|---|---|---|---|
| Length (mm) | 3160 | 4380 | 6250 |
| Width (mm) | 1740 | 2000 | 2450 |
| Height (mm) | 1650 | 1920 | 2300 |
Panel Specifications
| Component | Specification |
|---|---|
| Panel Type | FRP + Honeycomb + FRP |
| Roof Panel | 1.5mm + 18mm + 1.5mm |
| Front Panel | 1.5mm + 18mm + 1.5mm |
| Wall Panel | 1.5mm + 18mm + 1.5mm |
| Floor Panel | 3mm Steel Checked Plate |
| Rear Door | 1 pair of 20mm thick FRP plywood swing doors |
Custom sizes available from 2m to 9m (Please specify your requirements)
