Light Weight Fiberglass FRP Honeycomb Sandwich Panel For Dry Freight Truck Body
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | Dry Truck Body Panel | Durability: | Won′t Crack Easily When Meet Gravel |
|---|---|---|---|
| Rinse: | Easy Rinse | Technology: | High Level |
| Fire Index: | Conform To The National B2 Step | Used For: | Dry Freight Truck Body, House, Container |
| Transport Package: | Export Standard | Trademark: | SNOWFALL |
| Origin: | Guangzhou, China | HS Code: | 8707909000 |
| Supply Ability: | 1000 Square Meter Per Week | Usage: | Industral |
| Product Categories: | FRP With PP | Material: | Fiberglass |
| Service: | OEM | Max. Measurement: | 9.5m*3m |
| Fuction: | Good For Anti Corrosion | Customization: | Available | Customized Request |
| Highlight: | Light Weight Frp Honeycomb Panels,Freight Truck Body Frp Honeycomb Panels |
||
Product Description
Light Weight Fiberglass FRP Honeycomb Sandwich Panel For Dry Freight Truck Body
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | Dry truck body panel |
| Durability | Won't Crack Easily When Meet Gravel |
| Rinse | Easy Rinse |
| Technology | High Level |
| Fire Index | Conform to The National B2 Step |
| Used for | Dry Freight Truck Body, House, Container |
| Transport Package | Export Standard |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8707909000 |
| Supply Ability | 1000 Square Meter Per Week |
| Usage | Industrial |
| Product Categories | FRP with PP |
| Material | Fiberglass |
| Service | OEM |
| Max. Measurement | 9.5m*3m |
| Function | Good for Anti Corrosion |
| Customization | Available |
Product Description

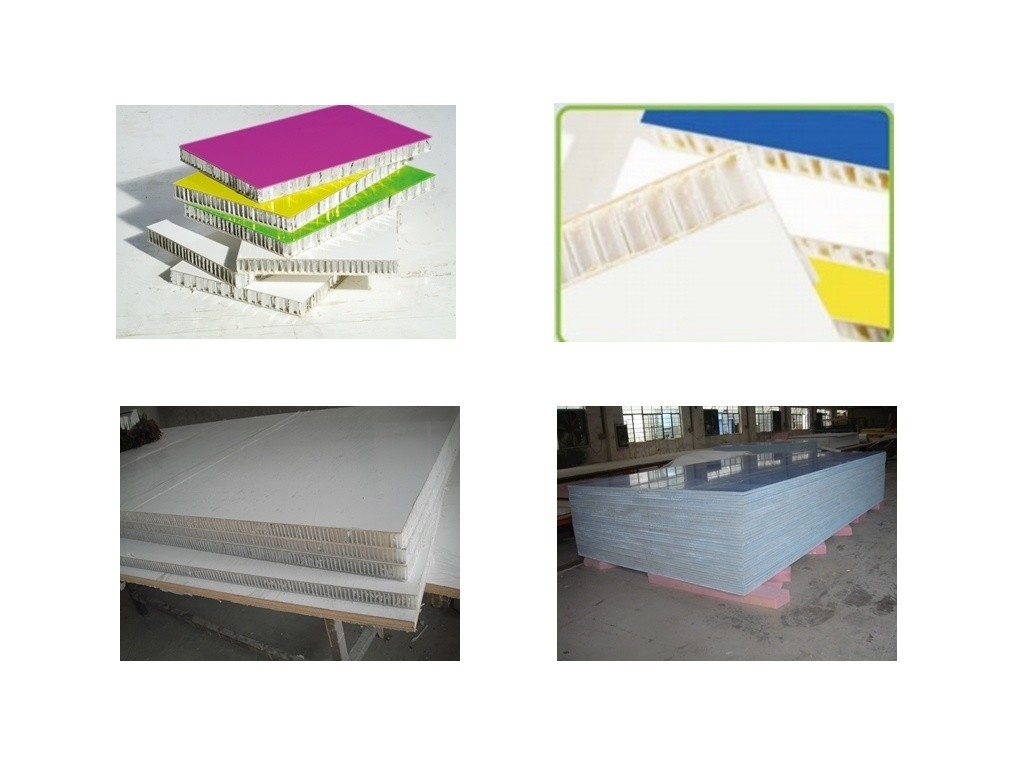

Fiberglass and PP honeycomb sandwich panel
Introduction
A. The panels are made of prefabricated fiberglass reinforced plastic sheet, high-strength woven roving and plastic honeycomb by vacuum bonding using high pressure German technology.
B. The gelcoat on the surface uses iso-phtalic-ngp based resin, FDA approved.
Advantages
- Better insulation
- Light weight
- High strength
- Corrosion resistance
- Glossy and smooth surface
- Easy repair
- Long service life
It's the first choice for modern logistics applications.
Standard Thickness
15mm, 18mm, 21mm
Maximum Panel Dimensions
10m × 3m
Plastic Honeycomb-core FRP Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Static Strength Mpa≥ | 18 |
| 2 | Elastic Modulus Mpa≥ | 1500 |
| 3 | Barcol Hardness≥ | 40 |
| 4 | Impact Strength KJ/M²≥ | 50 |
| 5 | Edgewise compressive Strength Mpa≥ | 10 |
| 6 | Flatwise tension Strength Kpa≥ | 450 |
| 7 | Flatwise compression Strength Mpa≥ | 1.5 |
Panel Thickness and Weight
| No | Panel's thickness (mm) | Weight (kg/m²) |
|---|---|---|
| 1 | 15 | 7.5 |
| 2 | 18 | 8 |
| 3 | 21 | 8.5 |
