Thermal Insulation Refrigerated Truck Box with New Condition and Formed at High Pressure by Vacuum Tech
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Transmission Type: | Manual | Horsepower: | <150hp |
|---|---|---|---|
| Fuel Type: | Diesel | Weight: | Light In Weight |
| Panel Material: | FRP Sandwich Panel | Insulation Material: | Extruded Polystyrene Foam |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (foam) | Heat Transference: | <0.3W/M².K |
| Fire Retardant: | B1 Level | Service Life: | 4-6x Traditional Products |
| Floor Material: | Figured Aluminum Panel | Door Sealing: | Imported Rubber |
| Edge Material: | Aluminum Alloy/stainless Steel | Hinge Material: | Stainless Steel/galvanized |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | Thermal Insulation Refrigerated Truck Box,New Condition Insulated Truck Body,Formed at High Pressure CKD Truck Cargo |
||
Product Description
Insulated Truck Box CKD Truck Cargo
High-performance refrigerated truck body designed for optimal thermal insulation and durability in demanding transportation environments.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
- Panels fixed to steel frame with high-strength adhesive and rivets for structural integrity
Construction Features
- Fully enclosed structure with all panels adhered using high-strength structural adhesive
- Designed for reliable sealing and insulation properties
- Modular design enables fast and easy assembly
Specifications
High-accuracy door panels with imported sealing rubber for excellent airtight and thermal insulation
Interior and exterior finished with aluminum alloy profiles or stainless steel components (edges, corners, hinges, locks)
Protective guardrails on sides and rear with integrated lighting system
Reinforced floor design with figured aluminum panels for superior load capacity and wear resistance
Customizable material selection and structure design to meet specific requirements
Optional interior compartments for multi-temperature zone capability
Key Properties
| Property | Description |
|---|---|
| Weight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient (K-value) below 0.3W/M².K |
| Surface Durability | High tensile/bending strength, chemical resistant, UV protected, easy to clean |
| Water Resistance | Excellent impermeability on both FRP surfaces |
| Fire Safety | Conforms to national standard B1 fire retardant level |
| Service Life | 4-6 times longer than traditional products |
| Maintenance | Repairs leave no visible traces, superior to steel/aluminum |
| Environmental | No volatile/corrosive substances, fluorine-free foam core |
| Refrigeration | Compatible with USA, German, or Chinese refrigeration units |

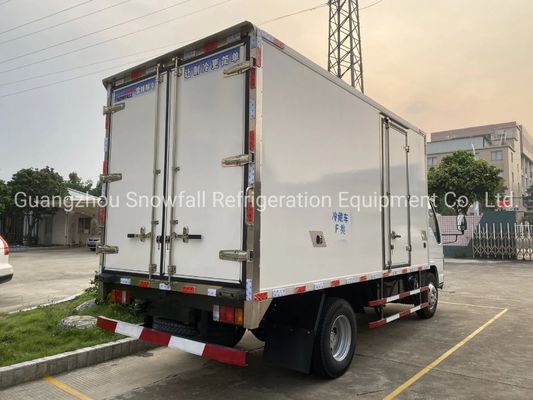

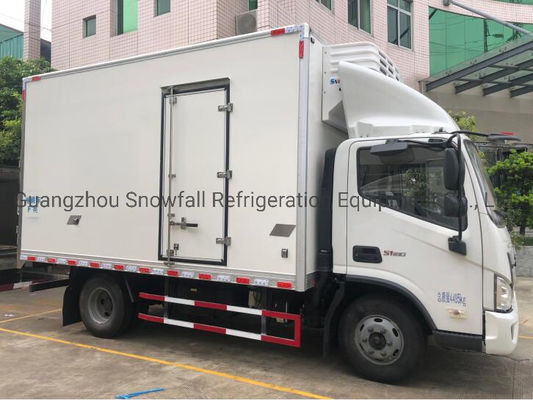

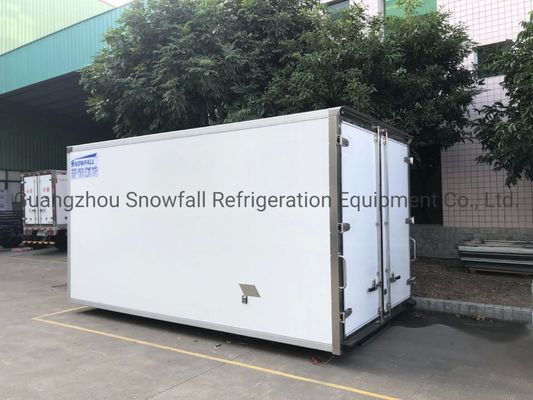

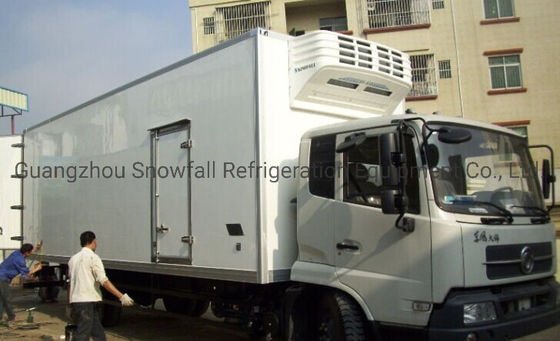

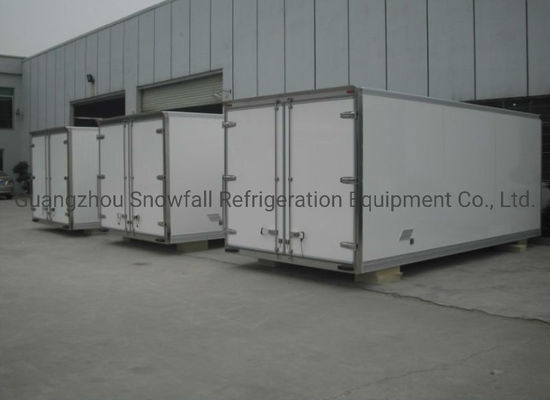

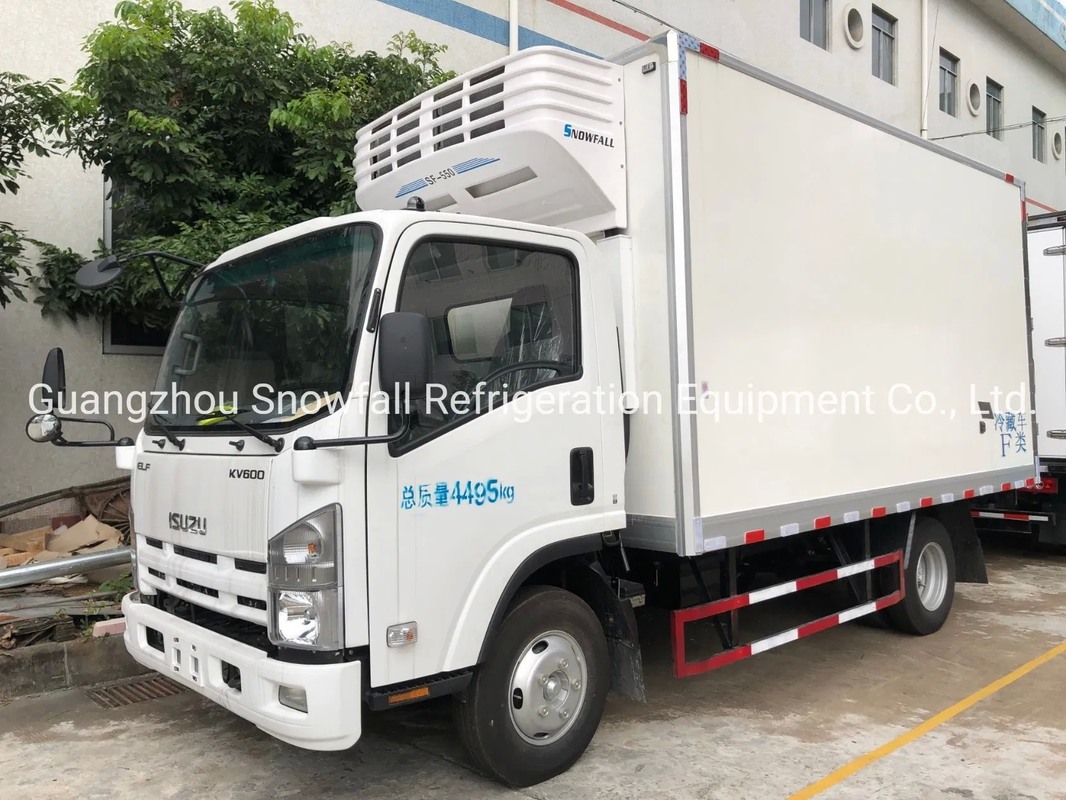

Product Images
Global Reputation: Our insulated truck bodies have been exported worldwide and earned excellent customer feedback for their quality and performance.
