Durable FRP Panel Insulated Box with Easy Installation and Better Sealing for Refrigerated Truck
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Transmission Type: | Manual | Horsepower: | <150hp |
|---|---|---|---|
| Fuel Type: | Diesel | Weight: | Light In Weight |
| Panel Material: | FRP Sandwich | Insulation Material: | Extruded Polystyrene Foam |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (foam) | Overall Heat Transfer: | <0.3W/M².K |
| Fire Retardant Level: | B1 | Service Life: | 4-6x Traditional Products |
| Surface Strength: | High Tensile/bending/impact | Chemical Resistance: | Acid/alkali/rainwater Resistant |
| Water Impermeability: | Excellent Both Sides | Floor Material: | Figured Aluminum Panel |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | Easy Installation FRP Panel Insulated Box,Durable Refrigerated Truck Box,Better Sealing Cargo Truck Box |
||
Product Description

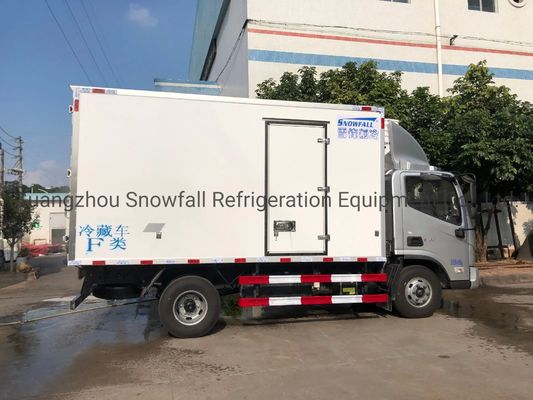

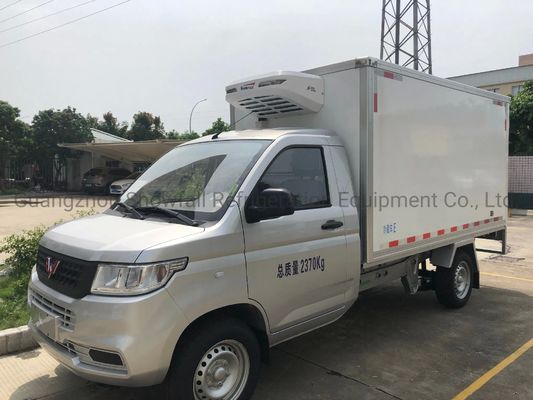

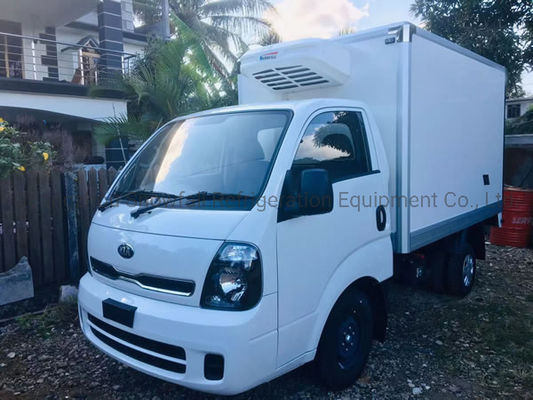

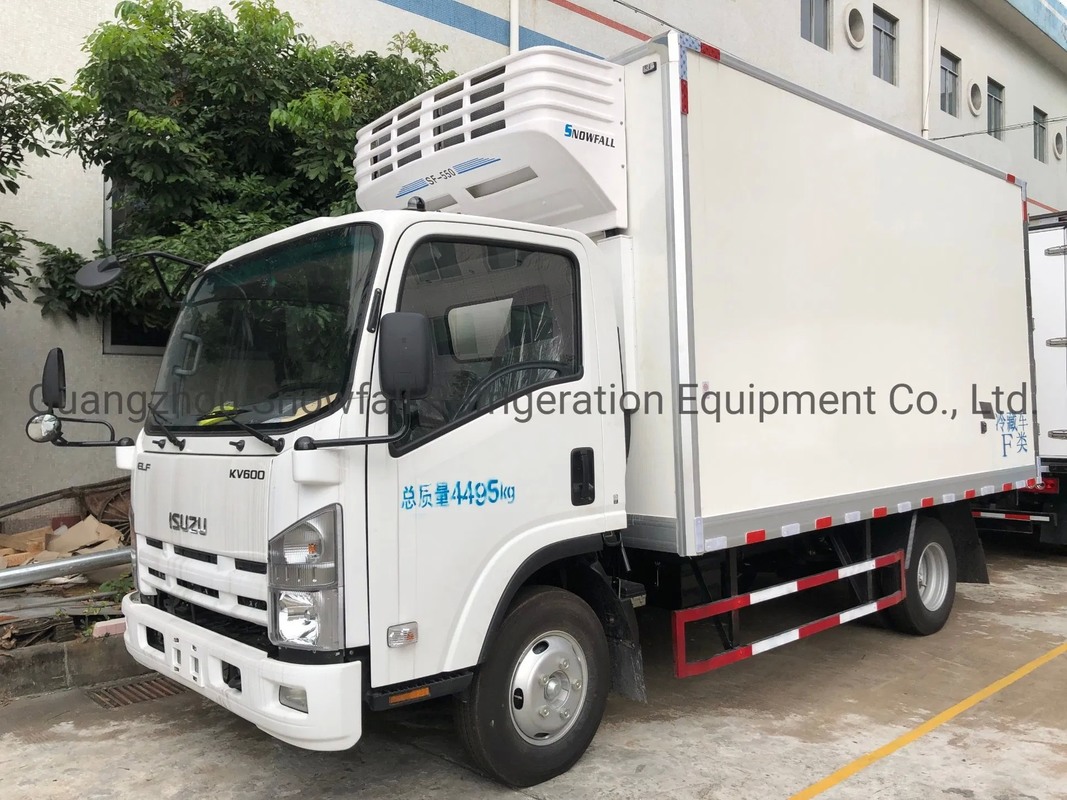

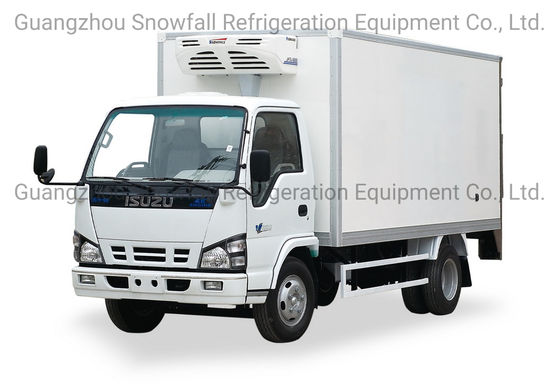

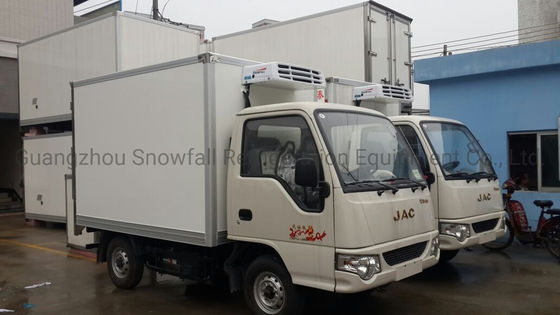

Cargo Truck FRP Panel Insulated Box
Refrigerated truck body designed for optimal thermal insulation and durability.
Material & Performance
- New type FRP used as outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
- Panels fixed to steel frame with high-strength adhesive and rivets for structural integrity
Construction
- Fully enclosed structure with panels adhered using high-strength structural adhesive
- Designed for reliable conjunction, excellent sealing, and optimal insulation properties
- Quick and easy assembly process
Specifications
Door Panel
High-accuracy manufacturing process with imported sealing rubber for superior airtight and thermal insulation performance.
Exterior & Interior
Decorated with special aluminum alloy profiles or stainless steel edges, corners, hinges, locks, and hangers.
Protection & Lighting
Equipped with side and end protection guardrails and various lighting fixtures for safety and visibility.
Reinforced Floor
High-quality figured aluminum floor panel ensures exceptional loading capacity, durability, and wear resistance while facilitating easy loading/unloading.
Customizable designs available to meet specific material, structure, and refrigeration requirements.
Interior compartments can be configured to maintain different temperature zones within the same van.
Key Properties
- Lightweight: 30-40% lighter than traditional domestic products
- Thermal Insulation: Overall heat transfer coefficient (K-value) below 0.3W/m².K
- Surface Durability: High tensile strength, chemical resistance, and UV protection with smooth, fade-resistant finish
- Water Resistance: Excellent impermeability on both FRP panel surfaces
- Fire Safety: Complies with national standard B1 fire retardant level
- Long Service Life: 4-6 times longer lifespan than traditional products
- Easy Maintenance: Repairs leave no visible traces on panels
- Eco-Friendly: No volatile or corrosive substances; uses extruded polystyrene foam without fluorine
- Refrigeration Options: Available with USA, German, or Chinese-made refrigerator groups
Our products have been exported worldwide for years and enjoy an excellent reputation for quality and performance.
