SNOWFALL Refrigerated Truck Box 150hp Diesel Lightweight Insulated
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Transmission Type: | Manual | Horsepower: | <150hp |
|---|---|---|---|
| Fuel Type: | Diesel | Weight: | Light In Weight |
| Outer Material: | FRP | Inner Material: | FRP |
| Insulation Material: | Extruded Polystyrene Foam | Panel Construction: | Sandwich Type |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam) | Heat Transference: | <0.3W/M².K |
| Fire Retardant: | B1 Level | Service Life: | 4-6 Times Longer Than Traditional |
| Door Sealing: | Imported Rubber | Floor Material: | Figured Aluminum Panel |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | refrigerated truck box 150hp diesel,lightweight refrigerated truck box,insulated refrigerated truck box |
||
Product Description

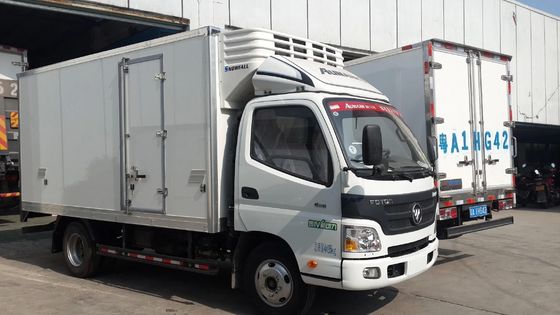

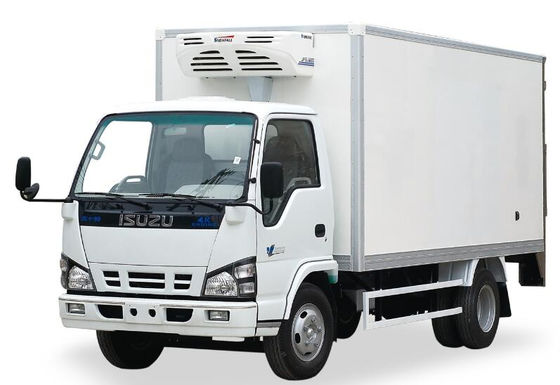

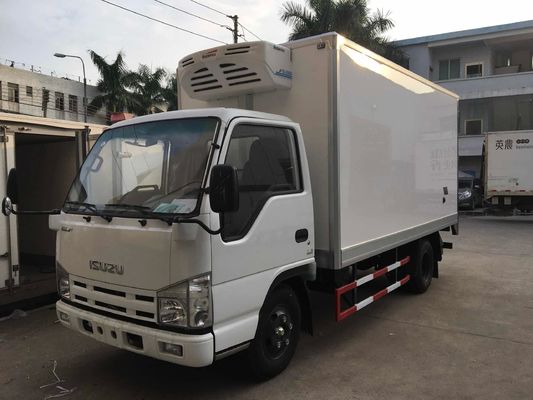

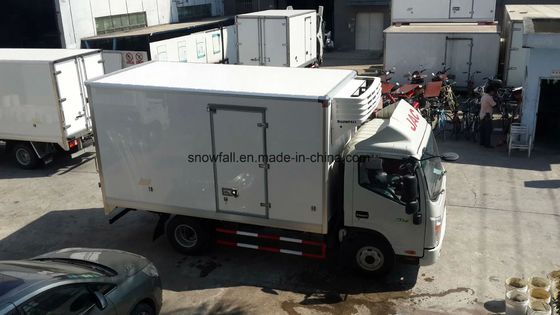

Freezing Truck Body Refrigeration Insulated Box
High-performance refrigerated truck body designed for optimal thermal insulation and durability in demanding transportation environments.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) outer and inner skin construction
- Sandwich panel design with extruded polystyrene foam core for superior thermal insulation
- Panels secured to steel frame with high-strength adhesive and rivets for structural integrity
Construction Features
- Fully enclosed structure with high-strength structural adhesive bonding for reliable sealing and insulation

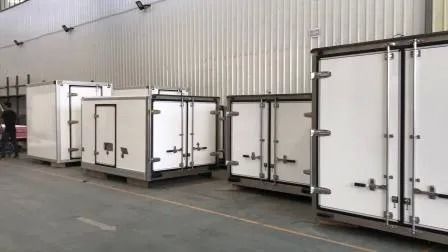

- Modular design enables fast and efficient assembly
- Precision-engineered door panels with imported sealing rubber for optimal airtight performance
Specifications
- Interior and exterior finished with aluminum alloy profiles or stainless steel components
- Protective guardrails installed on sides and rear for enhanced safety
- Reinforced floor design with figured aluminum panels for superior load capacity and wear resistance
- Customizable configurations available to meet specific material and structural requirements
- Optional interior compartments for multi-temperature zone functionality
Key Properties
| Property | Specification |
|---|---|
| Weight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient (K-value) below 0.3W/m².K |
| Surface Durability | High tensile strength, chemical resistance, and UV protection |
| Water Resistance | Excellent impermeability on both FRP surfaces |
| Fire Safety | Complies with national standard B1 level |
| Service Life | 4-6 times longer than conventional products |
| Maintenance | Repairable without visible traces |
| Environmental | Non-toxic, fluorine-free materials meet green standards |
Refrigeration units available from leading manufacturers in USA, Germany, or China to meet diverse cooling requirements. Our products have been successfully exported worldwide and maintain an excellent market reputation.
