SNOWFALL Refrigerated Truck Box 8ft to 32ft Customizable Size
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 4800 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Insulation Material: | Extruded Polystyrene Foam | Panel Construction: | Sandwich Type |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam) | Heat Transference: | Below 0.3W/M².K |
| Weight Reduction: | 30-40% Lighter | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer | Door Sealing: | Imported Rubber |
| Floor Material: | Figured Aluminum Panel | Edge Material: | Aluminum Alloy/stainless Steel |
| Corner Material: | Stainless Steel/FRP | Hinge Material: | Stainless Steel/galvanized |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | customizable refrigerated truck box,8ft refrigerated truck box,32ft refrigerated truck box |
||
Product Description

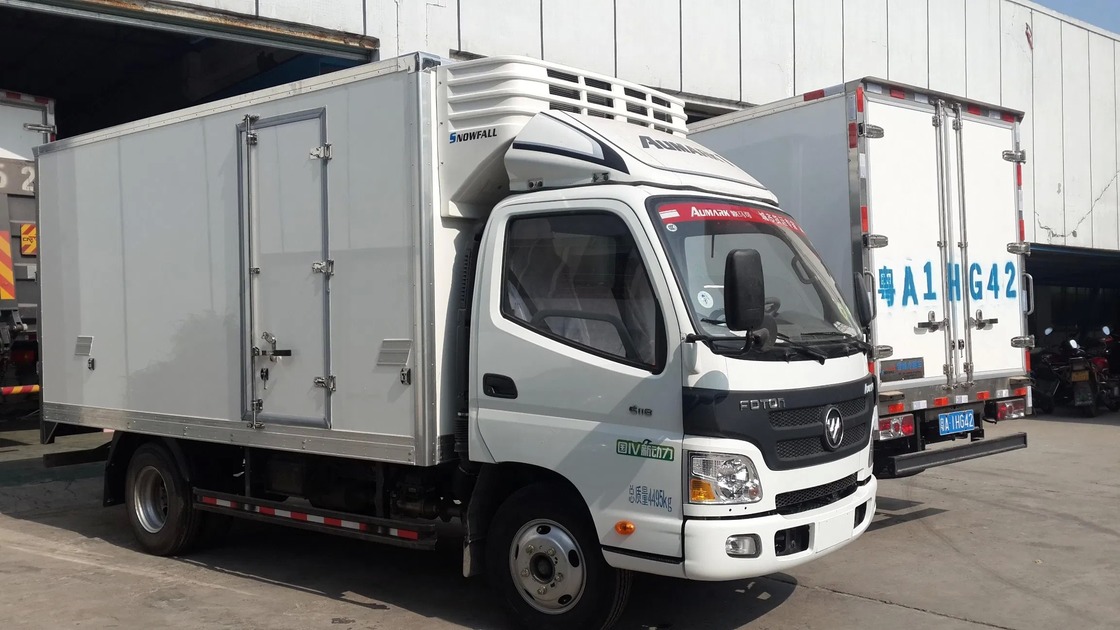

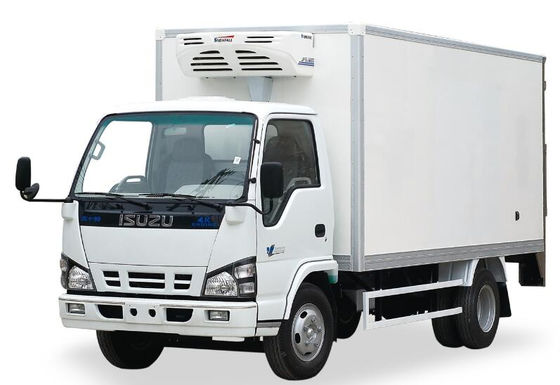

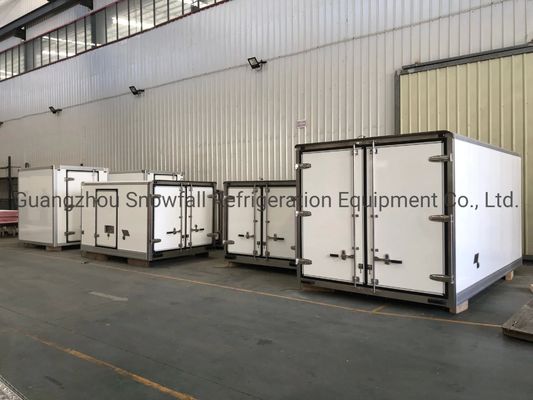

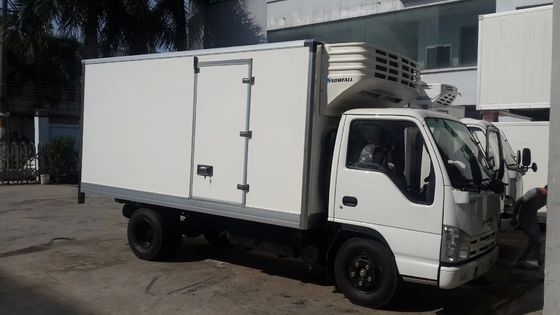

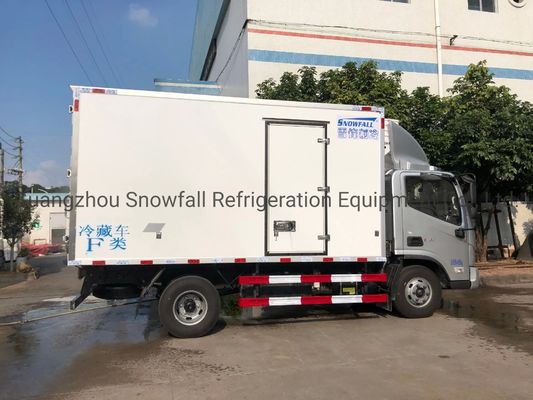

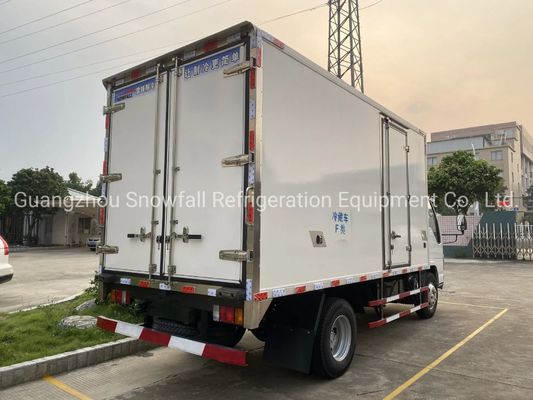

Freezer Cargo Truck Body Van Box
High-performance refrigerated truck body designed for optimal thermal insulation and durability in demanding transportation environments.
Material & Construction
- FRP outer and inner skin with extruded polystyrene foam core for superior insulation
- Sandwich panel construction fixed to steel frame with high-strength adhesive and rivets
- Full close structure with all panels adhered for maximum reliability and insulation
Key Specifications
- Precision door panels with imported sealing rubber for optimal airtight performance
- Aluminum alloy/stainless steel edge protection and hardware components
- Comprehensive safety features including side/end guardrails and lighting
- Reinforced floor with figured aluminum panels for strength and wear resistance
- Customizable interior compartments for multi-temperature zone requirements
Performance Characteristics
| Property | Specification |
|---|---|
| Weight | 30-40% lighter than traditional products |
| Thermal Insulation | Overall heat transfer coefficient below 0.3W/m²·K |
| Surface Durability | High tensile/bending strength, chemical/UV resistant |
| Water Resistance | Excellent impermeability on both FRP surfaces |
| Fire Safety | Conforms to national standard B1 level |
| Service Life | 4-6 times longer than traditional products |
Customization Options
Available with refrigerator units from USA, Germany, or China to meet specific cooling requirements. Interior can be configured for multiple temperature zones within the same van.
Global Applications
Our products have been successfully exported to North America, South America, Europe, Asia, Africa, Oceania, and the Middle East, earning international recognition for quality and reliability.
