Customizable Refrigerated Truck Box 150 Sets Per Month Export Standard
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2000 |
|
Detail Information |
|||
| Size: | Customizable | Material: | FRP Inner Skin |
|---|---|---|---|
| Construction: | Full Close Structure | Panel Adhesion: | High Strength Structural Adhesive |
| Door Panel: | High Accuracy Process | Sealing Rubber: | Imported |
| Edge Material: | Aluminum Alloy/stainless Steel | Floor Material: | Figured Aluminum Panel |
| Weight Reduction: | 30-40% Lighter | Heat Conductivity: | 0.20W/M².K (FRP) |
| Heat Transference: | Below 0.3W/M².K | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer | Refrigerator Options: | USA/German/Chinese |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | customizable refrigerated truck box,refrigerated truck box export standard,refrigerated truck box 150 sets |
||
Product Description

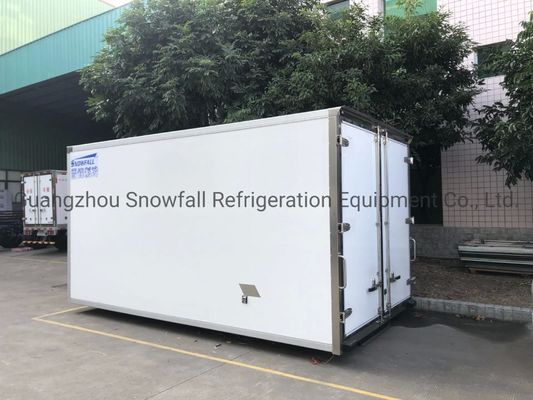

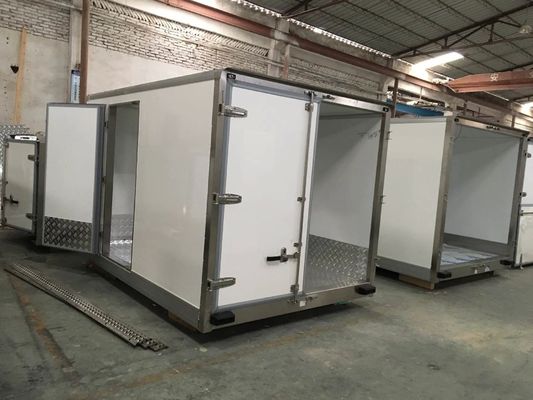

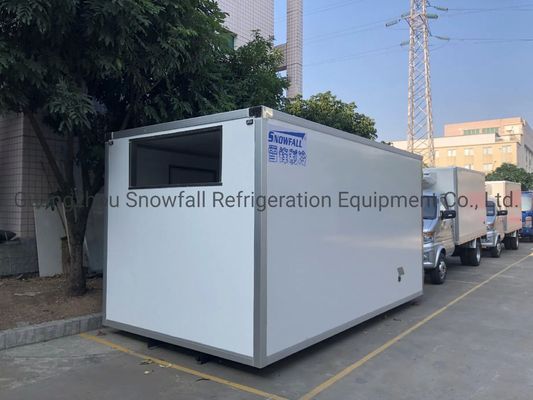

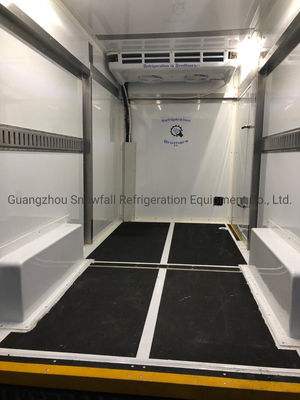

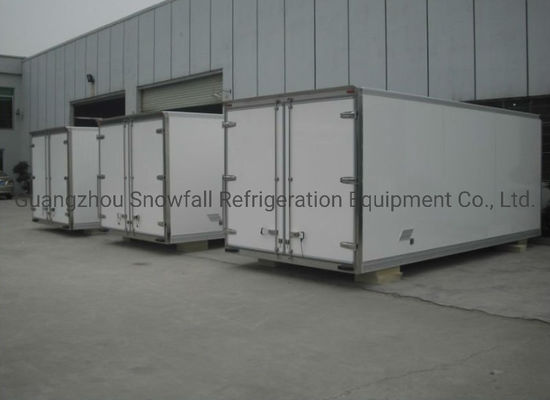

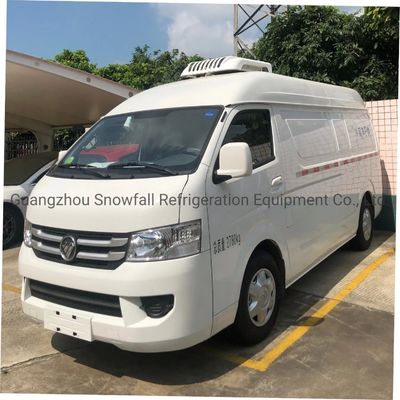

Keep Fresh Refrigeration Food Body Van Box
High-performance refrigerated van body designed for optimal food preservation during transport, featuring advanced insulation and durable construction.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) inner skin for superior durability
- Panels securely fixed to the van inner skin for structural integrity
Construction
- Fully enclosed structure with high-strength structural adhesive bonding
- Optimized for reliable sealing and insulation properties
- Designed for quick and easy assembly
Specification
- High-accuracy door panels with imported sealing rubber for superior airtightness
- Interior and exterior finished with aluminum alloy or stainless steel components
- Protective guardrails on sides and ends with integrated lighting
- Reinforced floor with figured aluminum panels for enhanced load capacity
- Customizable design to meet specific material and refrigeration requirements
- Optional interior compartments for multi-temperature zones
Key Properties
| Property | Specification |
|---|---|
| Weight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient below 0.3W/M².K |
| Surface Durability | High tensile strength, chemical resistance, and UV protection |
| Water Resistance | Excellent impermeability on both FRP panel surfaces |
| Fire Safety | Meets national standard B1 level |
| Service Life | 4-6 times longer than traditional products |
| Maintenance | Easy to repair without visible traces |
| Environmental | No volatile substances, fluorine-free, eco-friendly materials |
| Refrigeration Options | Available with USA, German, or Chinese refrigeration systems |
Our refrigerated van bodies have been exported worldwide and maintain an excellent reputation for quality and reliability.
