SNOWFALL Refrigerated Truck Box 8ft-32ft Lightweight High Strength
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2550 |
|
Detail Information |
|||
| Weight: | Light In Weight | Size: | 8ft, 10ft, 11ft To 32ft |
|---|---|---|---|
| Thermal Insulation: | 75-150mm Thick | Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam) |
| Heat Transference: | Below 0.3W/M².K | Surface Strength: | High Tensile, Bending, Impact |
| Chemical Stability: | Resistant To Rainwater, Acid, Alkali | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer Than Traditional | Material: | FRP Outer Skin, Polyurethane/XPS Foam Core |
| Floor Material: | High-quality Figured Aluminum | Sealing: | Imported Sealing Rubber |
| Assembly: | High-strength Adhesive And Screws | Production Capacity: | 150 Sets Per Month |
| Door Sealing: | High Accuracy Process | ||
| Highlight: | refrigerated truck box lightweight,refrigerated truck box high strength,refrigerated truck box 8ft-32ft |
||
Product Description

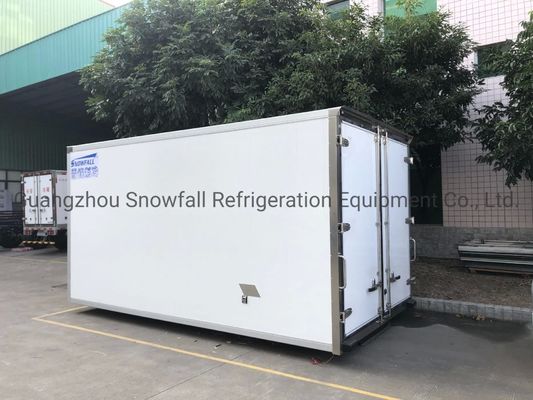

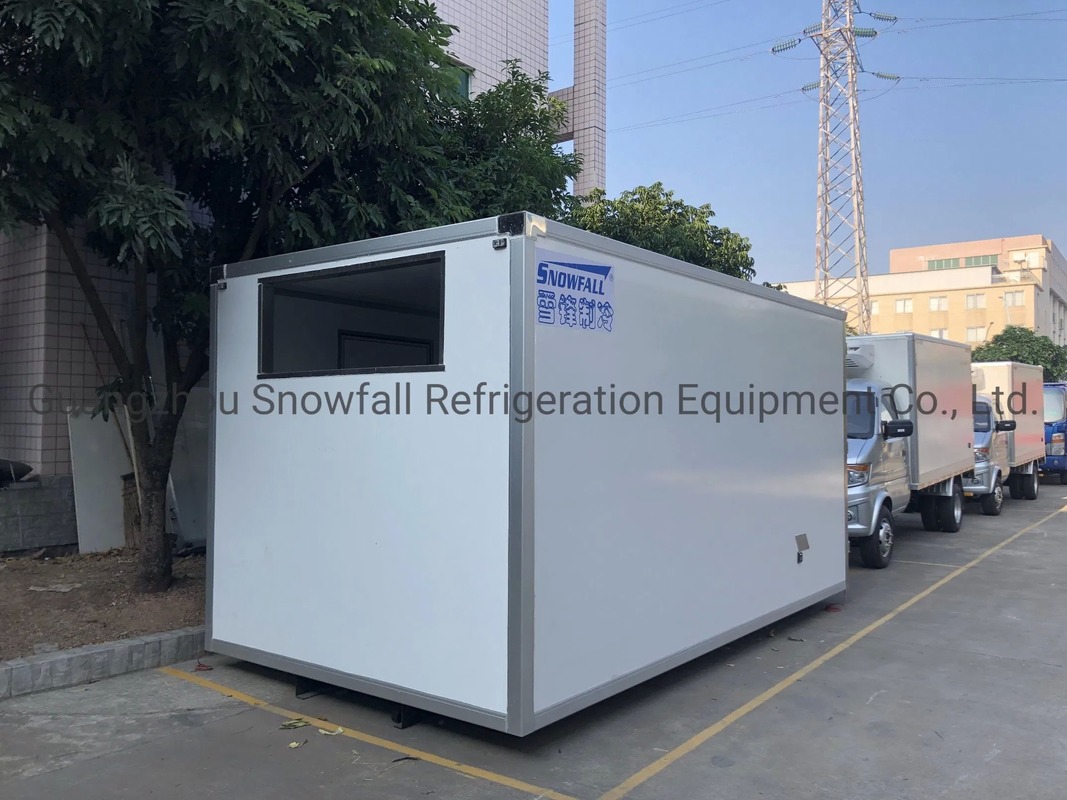

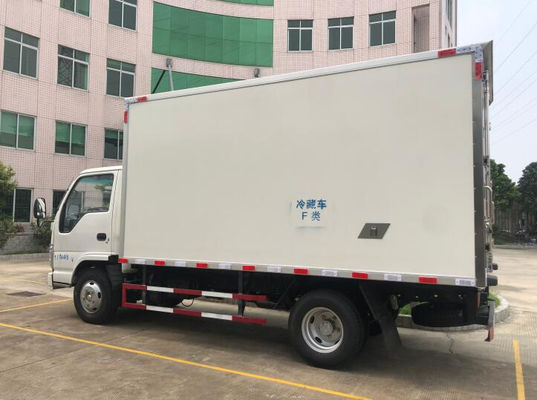

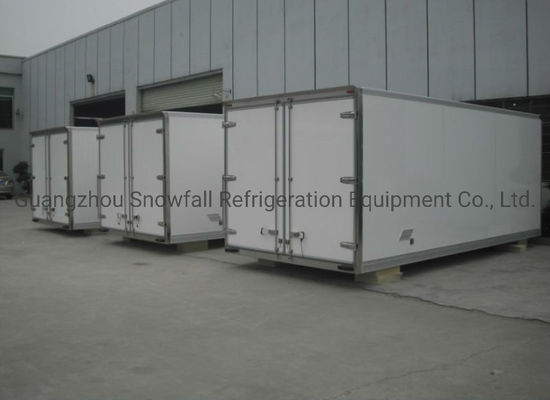

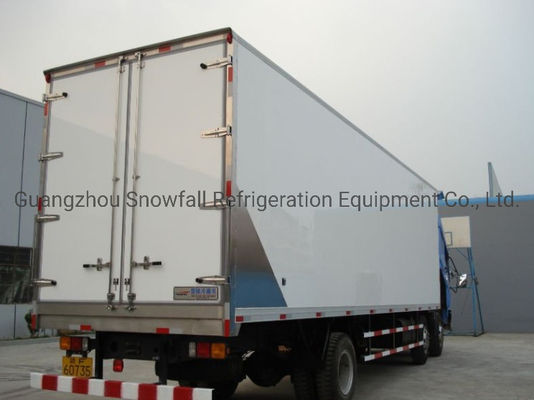

Insulated Truck Body CKD Refrigeration Box
Our refrigerated truck body features advanced construction with new type FRP outer skin for roof, walls, and doors. The sandwich panel construction combines a middle layer of fluorine-free polyurethane foam or extruded polystyrene foam (75-150mm thick) with high-strength adhesive and screw fixation to a steel frame, delivering exceptional thermal insulation and mechanical strength.
Key Structural Features
- Full close structure with high-strength structural adhesive for reliable conjunction and insulation
- Precision door panels with imported sealing rubber for optimal airtight performance
- Interior/exterior decoration with aluminum alloy profiles, stainless steel edges, and galvanized hinges
- Protection guardrails on sides and rear with integrated lighting system
- Reinforced floor design with figured aluminum panels for superior load capacity
- Customizable interior compartments for multi-temperature zone requirements
Performance Advantages
| Property | Value |
|---|---|
| Weight Reduction | 30-40% lighter than traditional products |
| Thermal Insulation | Overall heat transfer coefficient below 0.3W/M².K |
| Surface Durability | High tensile/bending strength, chemical resistant, UV protected |
| Water Resistance | Excellent impermeability on both FRP panel surfaces |
| Fire Safety | Conforms to national standard B1 level |
| Service Life | 4-6 times longer than conventional products |
Additional Benefits
- Easy maintenance with repairable surface that leaves no visible traces
- Environmentally friendly construction with no volatile or corrosive substances
- Compatible with refrigeration units from USA, Germany, or China
- Smooth surface ideal for vehicle advertising applications
