Customizable Refrigerated Truck Box 8ft to 32ft High Strength
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 4800 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Insulation Material: | Extruded Polystyrene Foam | Panel Construction: | Sandwich Type |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam) | Heat Transference: | Below 0.3W/M².K |
| Weight Reduction: | 30-40% Lighter Than Traditional | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer Than Traditional | Surface Strength: | High Tensile, Bending, Impact |
| Chemical Resistance: | Rainwater, Acid, Alkali Resistant | Water Impermeability: | Excellent |
| Floor Material: | Figured Aluminum Panel | Door Sealing: | Imported Rubber |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | customizable refrigerated truck box,high strength refrigerated truck box,8ft to 32ft refrigerated truck box |
||
Product Description
Truck Box for Refrigerated
Premium Construction & Materials
- Outer and inner skin constructed with new type FRP material
- Sandwich panel design with extruded polystyrene foam core for superior thermal insulation
- Panels secured to steel frame with high-strength adhesive and rivets
Advanced Structural Design
- Fully enclosed structure with panels bonded using high-strength structural adhesive
- Optimized for reliable sealing, insulation, and quick assembly
Technical Specifications
- Precision door panels with imported sealing rubber for optimal airtight performance
- Interior/exterior finished with aluminum alloy or stainless steel components
- Protective guardrails and lighting systems installed on all sides

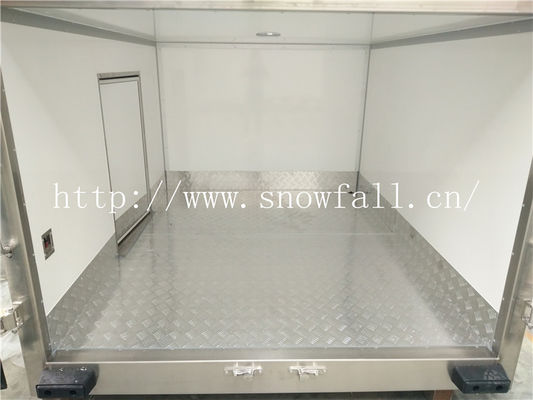

- Reinforced floor with figured aluminum panels for durability and load capacity
- Customizable interior compartments for multi-temperature zones
Key Performance Characteristics
| Feature | Specification |
|---|---|
| Weight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient below 0.3W/m²·K |
| Surface Durability | High tensile strength, chemical resistance, and UV protection |
| Water Resistance | Excellent impermeability on both FRP surfaces |
| Fire Safety | Meets national standard B1 fire retardant level |
| Service Life | 4-6 times longer than conventional products |
| Maintenance | Repairable without visible traces |
| Environmental | No volatile substances, fluorine-free foam core |
| Refrigeration Options | Compatible with USA, German, or Chinese refrigeration systems |
Our refrigerated truck boxes are exported worldwide and have established excellent reputation in markets across North America, South America, Europe, Asia, Africa, and Oceania.
Want to Know more details about this product
