Customizable Reefer Truck Box 8ft to 32ft High Strength FRP
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 4800 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Insulation Material: | Extruded Polystyrene Foam | Panel Construction: | Sandwich Type |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam) | Heat Transference: | Below 0.3W/M².K |
| Weight Reduction: | 30-40% Lighter Than Traditional | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer Than Traditional | Floor Material: | Figured Aluminum Panel |
| Door Sealing: | Imported Rubber | Edge Material: | Aluminum Alloy/stainless Steel |
| Corner Material: | Stainless Steel/FRP | Hinge Material: | Stainless Steel/galvanized |
| Available Lengths: | 8ft To 32ft | ||
| Highlight: | Customizable FRP reefer truck box,High strength refrigerated truck box,8ft to 32ft reefer container |
||
Product Description

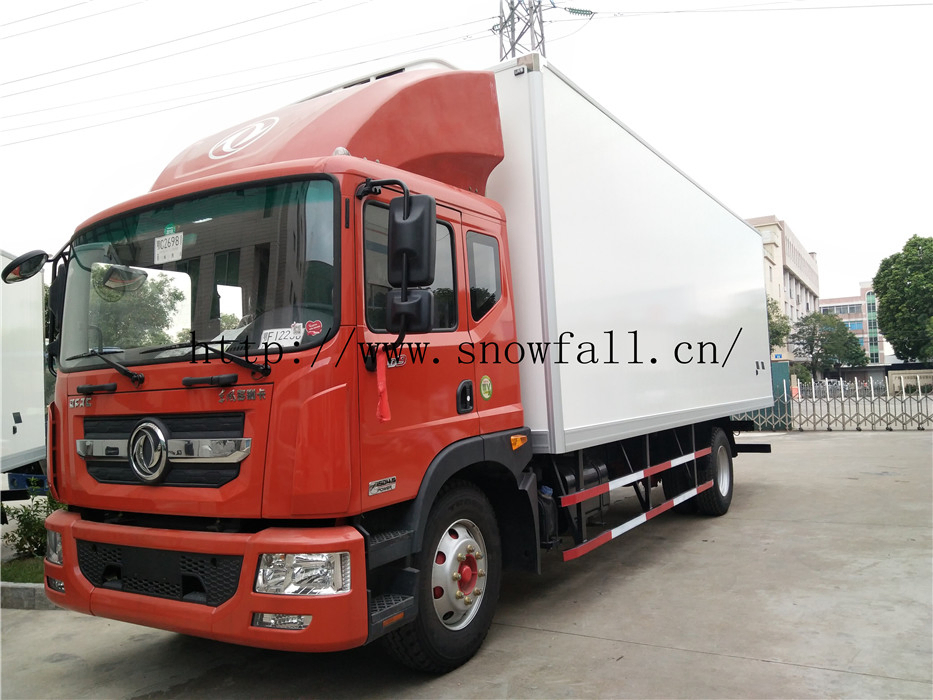

Reefer Truck Box for Sale
High-quality refrigerated truck boxes designed for optimal thermal insulation and durability, built with advanced materials and construction techniques.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) used for outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
- Panels fixed to steel frame with high-strength adhesive and rivets for maximum durability
Construction
- Fully enclosed structure with panels adhered using high-strength structural adhesive
- Designed for reliable sealing, insulation, and quick assembly
Specification
- High-accuracy door panels with imported sealing rubber for excellent airtight and thermal insulation
- Interior and exterior finished with aluminum alloy profiles or stainless steel components
- Protection guardrails installed on sides and end of van with various lighting options
- Reinforced floor design with figured aluminum panels for strength and easy loading
- Customizable designs available to meet specific material and refrigeration requirements
- Interior compartments can be configured for different temperature zones
Main Properties
| Lightweight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient (K-value) below 0.3W/M².K |
| Surface Durability | High tensile and bending strength, chemical resistant, UV protected |
| Impermeability | Excellent water resistance on both FRP panel surfaces |
| Fire Retardant | Conforms to national standard B1 level |
| Service Life | 4-6 times longer than traditional products |
| Maintenance | Easy to repair without leaving visible traces |
| Environmental | No volatile substances, fluorine-free foam core |
| Refrigeration Options | Available with USA, German, or Chinese refrigeration units |
Our reefer truck boxes have been exported worldwide and enjoy excellent reputation in markets including North America, South America, Europe, Asia, Africa, and Oceania.
