Small Refrigerated Truck Box Van Body 8ft to 32ft Customizable
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 4800 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Insulation Material: | Extruded Polystyrene Foam | Panel Construction: | Sandwich Type |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (polyurethane Foam) | Overall Heat Transfer: | Below 0.3W/M².K |
| Weight Reduction: | 30-40% Lighter | Fire Retardant Level: | B1 |
| Service Life: | 4-6x Traditional Products | Floor Material: | Figured Aluminum Panel |
| Edge Material: | Aluminum Alloy/stainless Steel | Corner Material: | Stainless Steel/FRP |
| Hinge Material: | Stainless Steel/galvanized | Available Lengths: | 8ft To 32ft |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | small refrigerated truck box van,customizable refrigerated truck body,8ft to 32ft refrigerated van |
||
Product Description

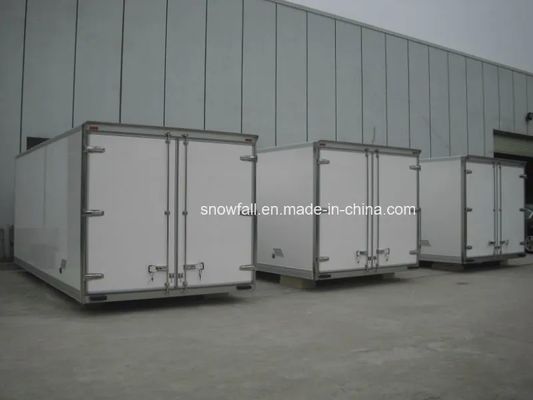

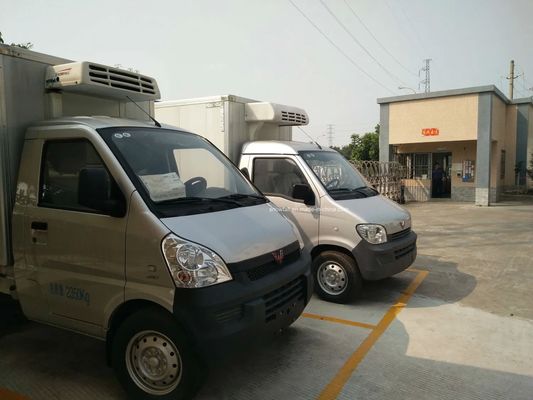

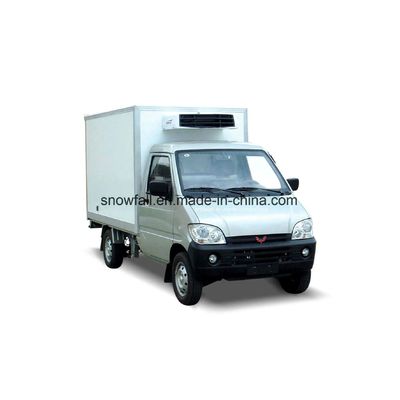

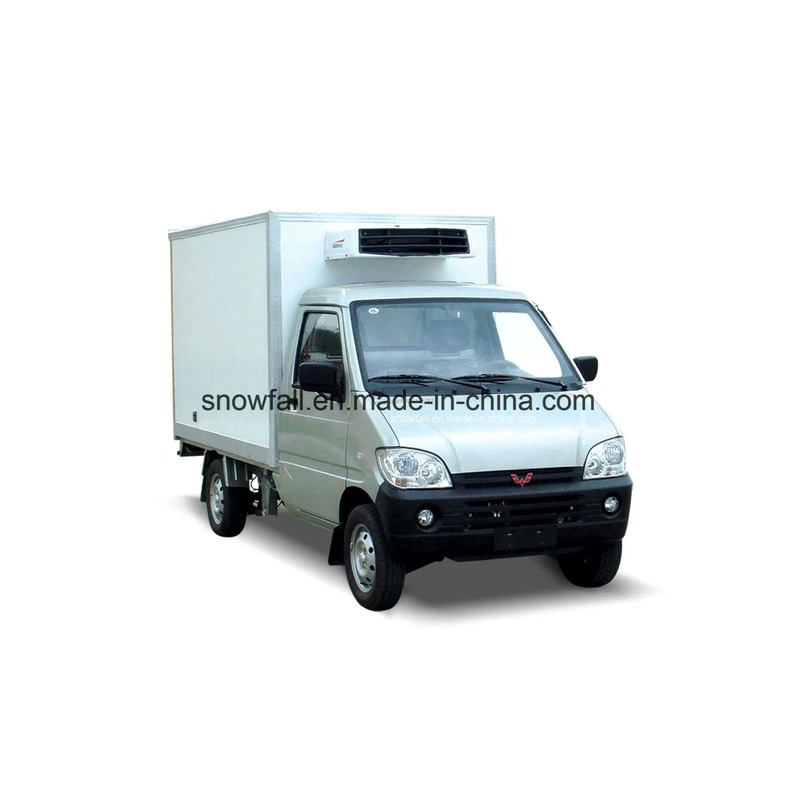

Small Refrigerated Truck Box Van Body
Our small refrigerated truck box van body offers superior thermal insulation and durability for commercial refrigeration transport needs.
Material & Performance
- FRP outer and inner skin construction for durability
- Sandwich panel design with extruded polystyrene foam core for excellent thermal insulation
- Panels secured to steel frame with high-strength adhesive and rivets
Construction Features
- Fully enclosed structure with high-strength structural adhesive for reliable sealing and insulation
- Quick and easy assembly design
Specifications
- Precision door panels with imported sealing rubber for optimal airtight performance
- Aluminum alloy or stainless steel trim for durability and aesthetics
- Protective guardrails and lighting systems installed
- Reinforced floor with figured aluminum panels for strength and easy loading
- Customizable design options available
- Optional interior compartments for multiple temperature zones
Key Properties
- Lightweight: 30-40% lighter than traditional products
- Superior Insulation: Overall heat transfer coefficient below 0.3W/m²K
- Durable Surface: High tensile strength, chemical resistance, and UV protection
- Waterproof: Excellent water impermeability on both sides
- Fire Retardant: Meets national standard B1 level
- Long Service Life: 4-6 times longer than traditional products
- Easy Maintenance: Repairs leave no visible traces
- Eco-Friendly: No volatile substances, fluorine-free materials
- Refrigeration Options: Available with USA, German, or Chinese refrigeration units
Our refrigerated truck bodies have been exported worldwide to North America, South America, Europe, Asia, Africa, and Oceania, earning an excellent reputation for quality and performance.
