FRP Refrigerated Truck Body 150 Sets Monthly Capacity
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Panel Type: | Sandwich Construction | Insulation Material: | Extruded Polystyrene Foam |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (foam) | Overall Heat Transfer: | <0.3W/M².K |
| Weight Reduction: | 30-40% Lighter | Fire Retardant: | B1 Level |
| Service Life: | 4-6x Longer | Floor Material: | Figured Aluminum Panel |
| Edge Material: | Aluminum Alloy/stainless Steel | Corner Material: | Stainless Steel/FRP |
| Hinge Material: | Stainless Steel/galvanized | Sealing Type: | Imported Rubber |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | FRP refrigerated truck body,refrigerated truck box with warranty,FRP truck body 150 sets |
||
Product Description

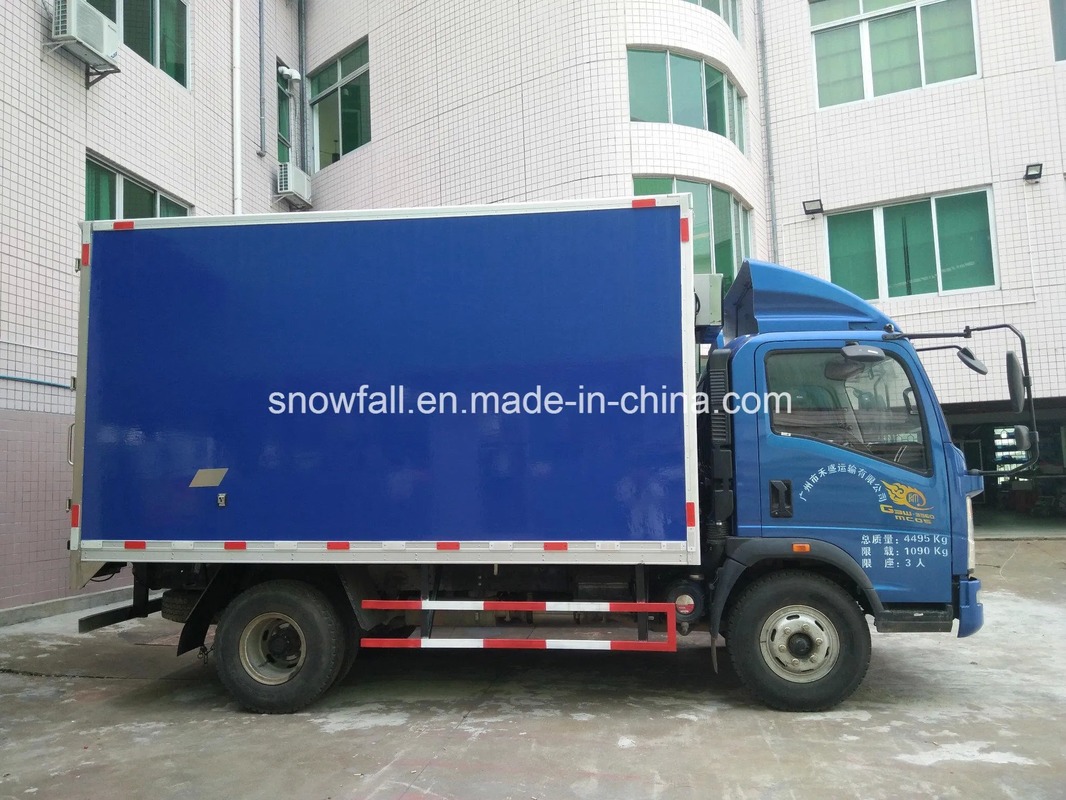

High Quality FRP Refrigerated Truck Body
Our premium FRP refrigerated truck body combines advanced materials with superior construction for exceptional thermal insulation and durability in demanding transportation environments.
Material & Performance
- Innovative FRP composite outer and inner skin construction
- Sandwich panel design with extruded polystyrene foam core for optimal thermal insulation
- Panels secured to steel frame with high-strength adhesive and rivets for structural integrity
Construction Features
- Fully enclosed structure with high-strength structural adhesive bonding for superior sealing and insulation
- Streamlined assembly process for efficient production
Specifications

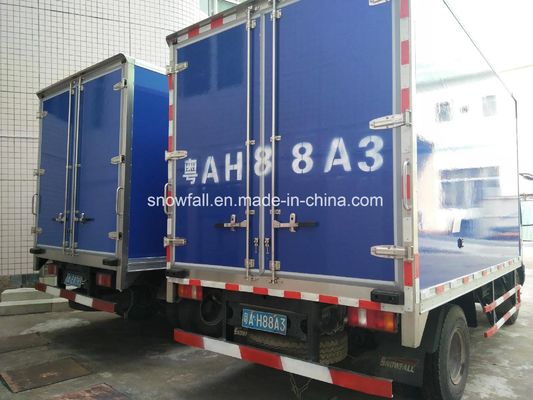

- Precision-engineered door panels with imported sealing rubber for optimal airtight performance
- Interior and exterior finished with aluminum alloy or stainless steel components for durability
- Protective guardrails and lighting systems integrated throughout the body

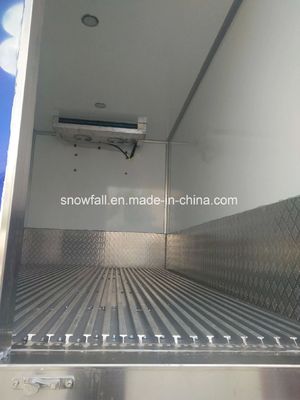

- Reinforced floor design with figured aluminum panels for superior load capacity and wear resistance
- Customizable configurations available for material selection, structural design, and refrigeration units
- Optional interior compartments for multi-temperature zone operation
Key Properties
| Property | Specification |
|---|---|
| Weight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient (K-value) below 0.3W/M².K |
| Surface Durability | High tensile strength, chemical resistance, and UV protection |
| Water Resistance | Excellent impermeability on both FRP surfaces |
| Fire Safety | Compliant with national standard B1 level |
| Service Life | 4-6 times longer than conventional products |
| Maintenance | Repairs leave no visible traces on panels |
| Environmental | No volatile substances, fluorine-free foam core |
Refrigeration units available from US, German, or Chinese manufacturers to meet specific cooling requirements. Our products have been successfully exported worldwide and maintain an excellent market reputation.
