Lightweight Freezer Truck Body 150 Sets/Month High Strength FRP
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Insulation Material: | Extruded Polystyrene Foam | Panel Construction: | Sandwich Type |
| Heat Conductivity: | 0.20W/M².K | Heat Transference: | Below 0.3W/M².K |
| Weight Reduction: | 30-40% Lighter | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer | Floor Material: | Figured Aluminum Panel |
| Edge Material: | Aluminum Alloy/stainless Steel | Hinge Material: | Stainless Steel/galvanized |
| Sealing Rubber: | Imported | Production Capacity: | 150 Sets/month |
| Assembly Method: | Adhesive And Rivet | ||
| Highlight: | lightweight FRP freezer truck body,high strength refrigerated truck box,freezer truck body with warranty |
||
Product Description

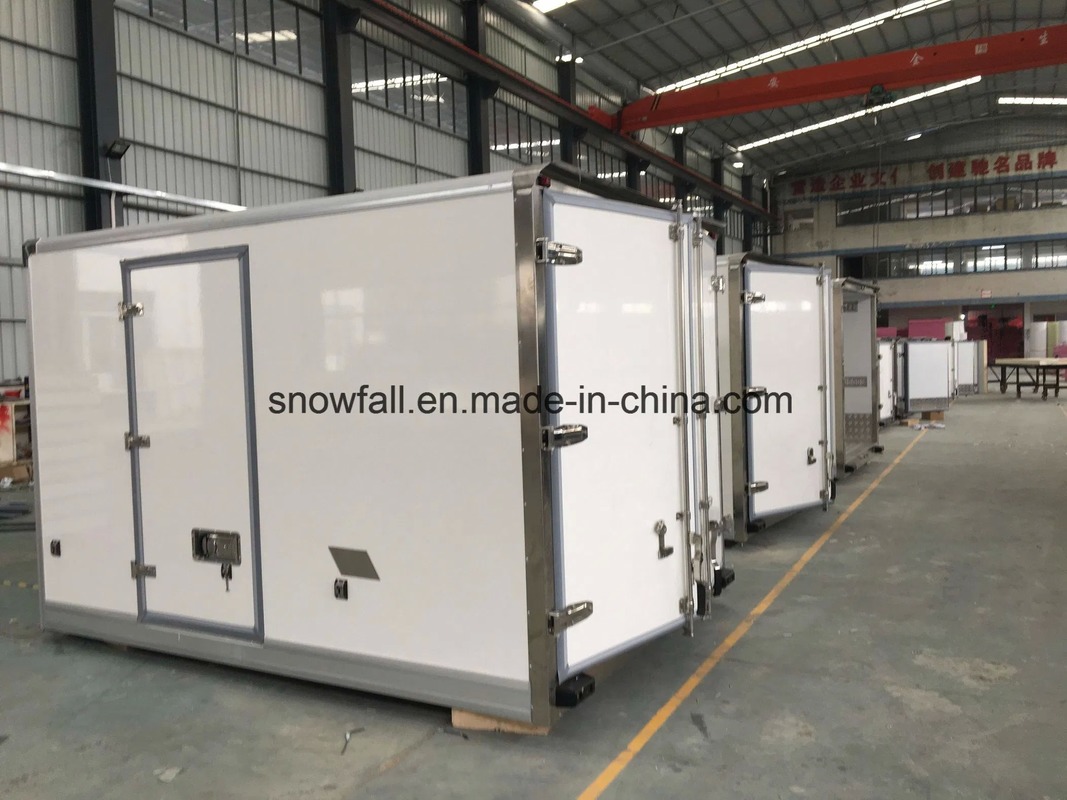

Light Weight Freezer Truck Body
High-performance refrigerator truck body designed for optimal thermal insulation and durability.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) used for outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
- Panels fixed to steel frame with high-strength adhesive and rivets for structural integrity
Construction
- Fully enclosed structure with panels adhered using high-strength structural adhesive
- Designed for reliable sealing, insulation, and quick assembly
Specification

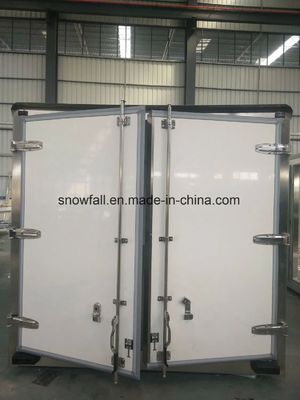

- Precision-manufactured door panels with imported sealing rubber for airtight insulation
- Interior and exterior finished with aluminum alloy or stainless steel components
- Protective guardrails and lighting systems installed for safety and visibility

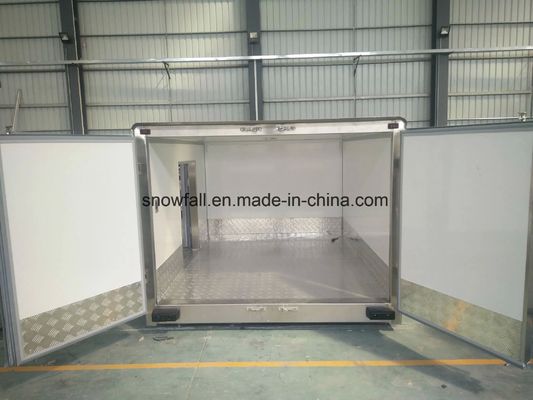

- Reinforced floor with figured aluminum panels for strength and easy loading
- Customizable design options for materials, structure, and refrigeration units
- Available with interior compartments for multiple temperature zones
Key Properties
| Property | Details |
|---|---|
| Weight | 30-40% lighter than traditional domestic products |
| Thermal Insulation | Overall heat transfer coefficient (K-value) below 0.3W/M².K |
| Surface Durability | High tensile strength, chemical resistance, and UV protection |
| Impermeability | Excellent water resistance on both FRP surfaces |
| Fire Safety | Conforms to national standard B1 level |
| Service Life | 4-6 times longer than traditional products |
| Maintenance | Repairable without visible traces |
| Environmental | No volatile substances, fluorine-free foam core |
| Refrigeration | Compatible with USA, German, or Chinese refrigeration units |
Our products have been exported internationally for years with excellent reputation.
Light Weight Freezer Truck Body
Light Weight Freezer Truck Body
Light Weight Freezer Truck Body
