Customizable Refrigerated Van Box with 150 Sets Monthly Capacity
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2000 |
|
Detail Information |
|||
| Model NO.: | Snowfall Truck Body | Size: | Customizable |
|---|---|---|---|
| Material: | FRP Inner Skin | Construction: | Full Close Structure |
| Panel Adhesion: | High Strength Structural Adhesive | Door Panel: | High Accuracy Process |
| Sealing Rubber: | Imported | Edge Decoration: | Aluminum Alloy/stainless Steel |
| Floor Design: | Figured Aluminum Panel | Weight Reduction: | 30-40% Lighter |
| Heat Conductivity: | 0.20W/M².K (FRP) | Heat Insulation: | 0.018-0.028W/M².K (polyurethane) |
| Overall Heat Transfer: | Below 0.3W/M².K | Fire Retardant: | B1 Level |
| Service Life: | 4-6 Times Longer | ||
| Highlight: | customizable refrigerated van box,refrigerated truck box 150 sets,refrigerated van box with warranty |
||
Product Description

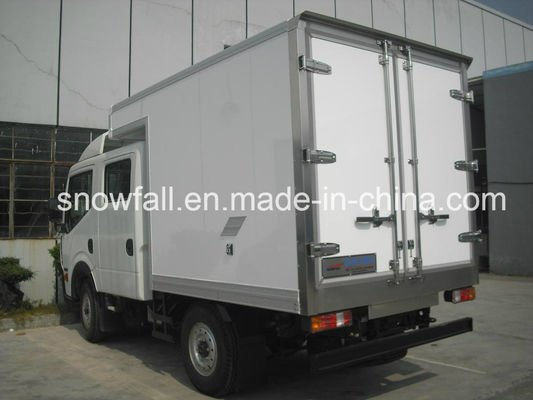

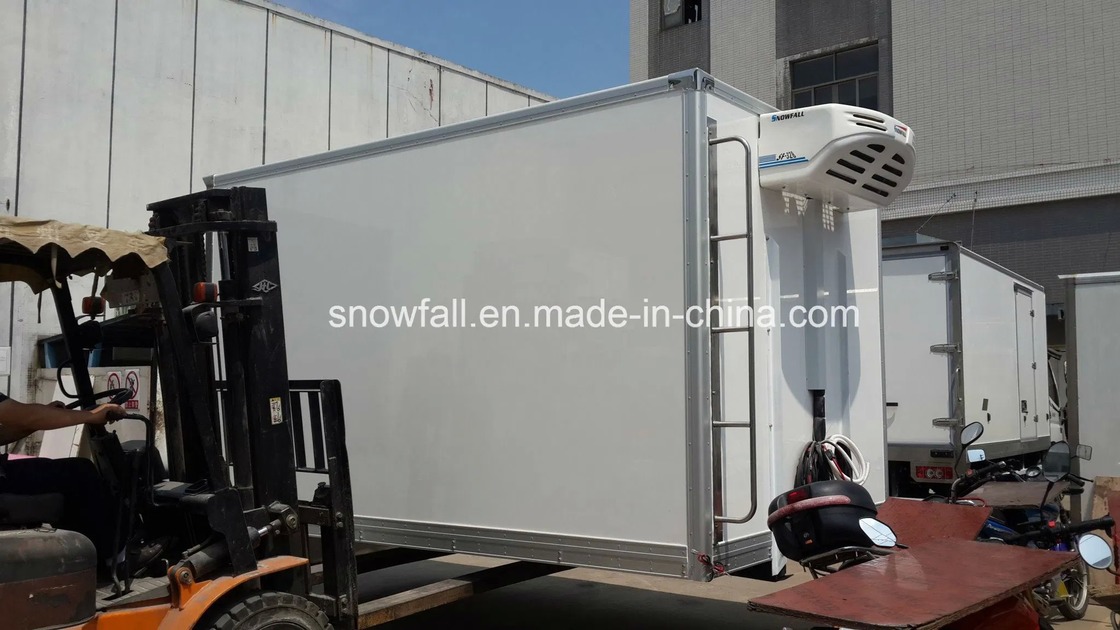

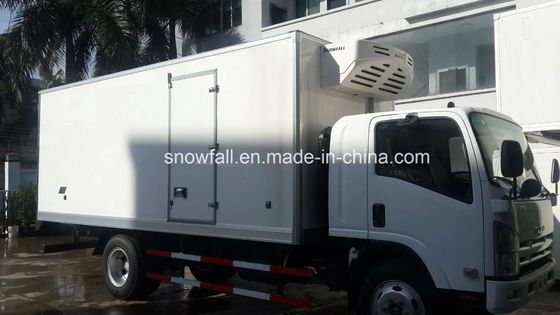

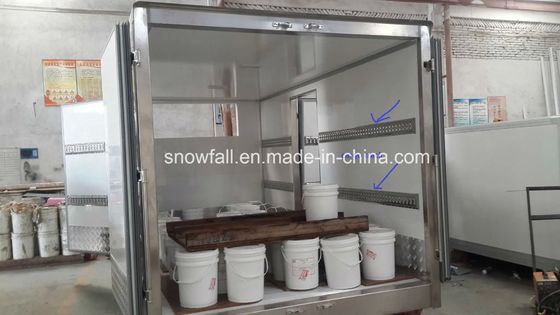

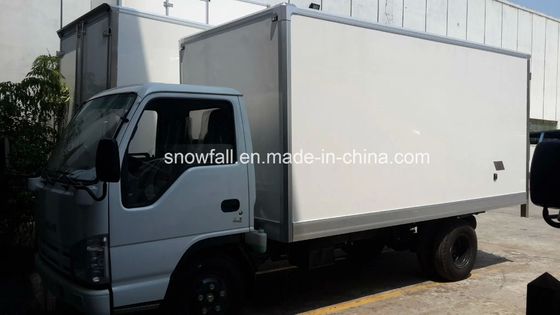

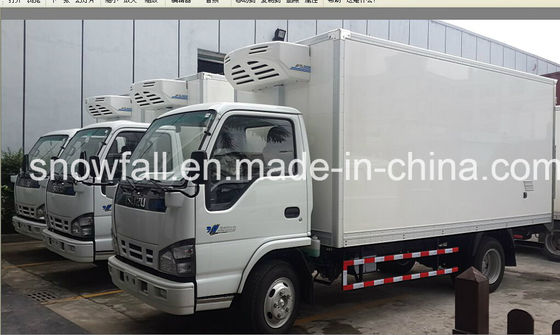

Refrigerated Van Box
High-performance refrigerated van body designed for optimal temperature control and durability in transportation applications.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) inner skin for superior durability
- Panels securely fixed to van inner skin for structural integrity
Construction
- Fully enclosed structure with all panels adhered using high-strength structural adhesive
- Provides reliable conjunction, excellent sealing, and superior insulation properties
- Designed for quick and easy assembly
Specification
1. High-precision door panel with imported sealing rubber for optimal airtight and thermal insulation
2. Interior and exterior finished with:
- Special aluminum alloy profiles or stainless steel edges
- Stainless steel or FRP corners
- Stainless steel or galvanized hinges/locks/hangers
3. Protection guardrails on both sides and rear of van with integrated lighting system
4. Reinforced floor design features:
- High-quality figured aluminum floor panel
- Exceptional load capacity and wear resistance
- Optimized for easy loading/unloading
5. Customizable design options:
- Material selection based on customer requirements
- Refrigerator installation options
- Interior compartments for different temperature zones
Key Properties
- Lightweight: 30-40% lighter than traditional domestic products
- Thermal Insulation: Overall heat transfer coefficient (K-value) below 0.3W/M².K
- Surface Durability: High tensile strength, bending strength, and impact resistance with excellent chemical stability
- Impermeability: Excellent water resistance on both sides of FRP panels
- Fire Safety: Complies with national standard B1 level
- Long Service Life: 4-6 times longer than traditional products
- Easy Maintenance: Repairs leave no visible traces on panels
- Eco-Friendly: No volatile or corrosive substances; fluorine-free materials
- Refrigeration Options: Available with USA, German, or Chinese refrigerator groups
Our refrigerated van boxes have been exported worldwide for years and maintain an excellent reputation for quality and performance.
