ISO9000 Certified Refrigerated Truck Box with High Pressure Vacuum Technology
Product Details:
| Place of Origin: | China |
| Brand Name: | SNOWFALL |
| Certification: | ISO , SGS, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flat pack |
| Delivery Time: | 10 days |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Production: | Formed At High Pressure By Cacuum Technonigy Of Ge | Durability: | Stability & Consistency |
|---|---|---|---|
| Installation: | Easy And Unique | Sealing: | Better Sealing |
| Technology: | Internation Patented Technology | Transport Package: | Export Standard |
| Specification: | 8ft, 10ft, 11ft To 32ft Size | Origin: | Guangzhou, China |
| HS Code: | 8707909000 | Supply Ability: | 150 Sets Per Month |
| Certification: | ISO9000, CE | Service: | OEM |
| Colour: | White Or Other Colour | Size: | Customizable |
| Weight: | Light In Weight | Strength: | High Strength |
| Customization: | Available | Customized Request | ||
| Highlight: | ISO9000 Certified Refrigerated Truck Box,High Pressure Vacuum Truck Box |
||
Product Description

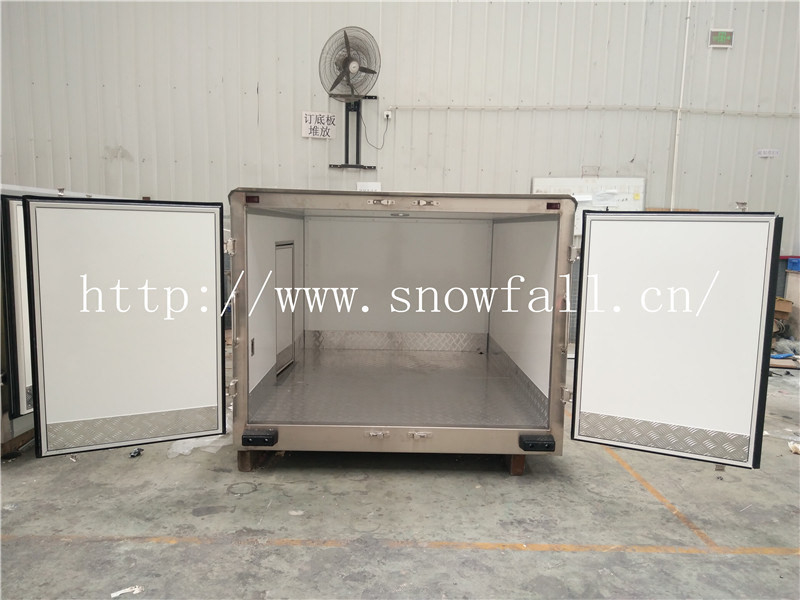

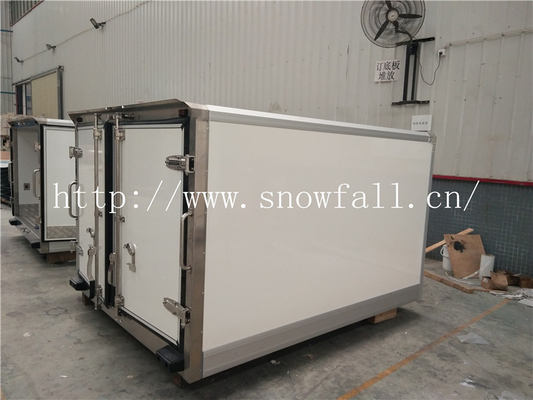

ISO9000 Certified Refrigerated Truck Box with High Pressure Vacuum Technology
| Attribute | Value |
|---|---|
| Production | Formed at High Pressure by Vacuum Technology |
| Durability | Stability & Consistency |
| Installation | Easy and Unique |
| Sealing | Better Sealing |
| Technology | International Patented Technology |
| Transport Package | Export Standard |
| Specification | 8ft, 10ft, 11ft to 32ft size |
| Origin | Guangzhou, China |
| HS Code | 8707909000 |
| Supply Ability | 150 Sets Per Month |
| Certification | ISO9000, CE |
| Service | OEM |
| Colour | White or Other Colour |
| Size | Customizable |
| Weight | Light in Weight |
| Strength | High Strength |
| Customization | Available |
Refrigerated Truck Box Features
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) used as outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for superior thermal insulation
- Panels fixed to steel frame with high strength adhesive and rivets for durability
Construction
- Fully enclosed structure with panels adhered using high strength structural adhesive
- Provides reliable conjunction, sealing and insulation properties
- Designed for easy and fast assembly
Specification Details

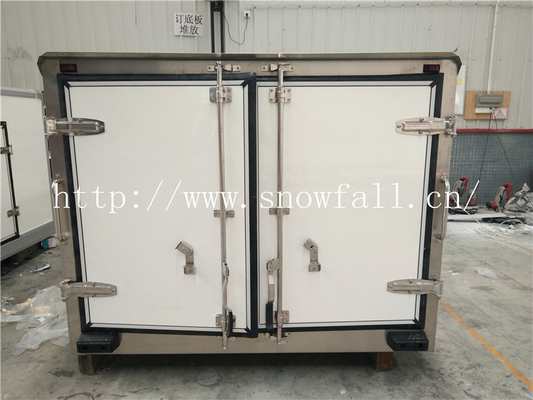

- High accuracy door panel process with imported sealing rubber for excellent airtight and thermal insulation
- Interior and exterior decorated with aluminum alloy profiles or stainless steel components
- Protection guardrails installed on sides and end of van with various lighting options

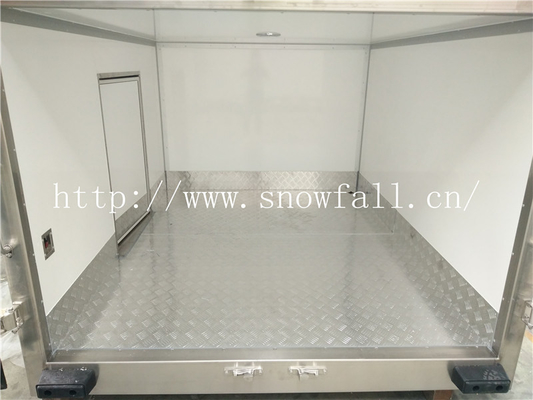

- Reinforced floor design with high quality figured aluminum panels for superior load capacity
- Customizable interior compartments for different temperature requirements
Key Properties
- Lightweight: 30-40% lighter than traditional products
- Thermal Insulation: Overall heat transfer coefficient below 0.3W/M².K
- Surface Durability: High tensile strength, chemical resistance, and UV protection
- Impermeability: Excellent water resistance on both sides
- Fire Retardant: Conforms to national standard B1 level
- Long Service Life: 4-6 times longer than traditional products
- Easy Maintenance: Repairs leave no visible traces
- Environmentally Friendly: No volatile substances, fluorine-free materials
- Compatible with refrigerator groups from USA, Germany, or China
Our ISO9000 certified refrigerated truck boxes have been exported worldwide to North America, South America, Europe, Asia, Africa, and Oceania, earning an excellent reputation for quality and performance.
