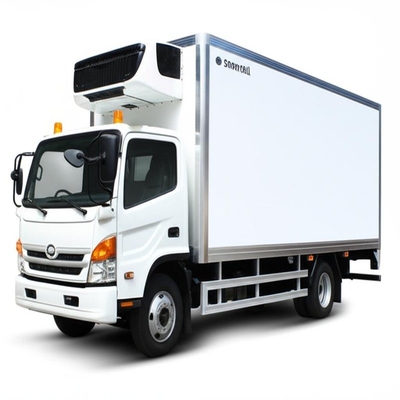

Snowfall Refrigerated Truck Body - Lightweight & High Strength
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Transmission Type: | Manual | Horsepower: | <150hp |
|---|---|---|---|
| Fuel Type: | Diesel | Weight: | Light In Weight |
| Panel Material: | FRP Sandwich | Insulation Material: | Extruded Polystyrene Foam |
| Heat Conductivity: | 0.20W/M².K (FRP), 0.018-0.028W/M².K (foam) | Heat Transfer Coefficient: | <0.3W/M².K |
| Surface Strength: | High Tensile, Bending, Impact | Fire Retardant: | B1 Level |
| Service Life: | 4-6x Traditional Products | Floor Material: | Figured Aluminum Panel |
| Door Sealing: | Imported Rubber | Edge Material: | Aluminum Alloy/stainless Steel |
| Production Capacity: | 150 Sets/month | ||
| Highlight: | lightweight refrigerated truck body,high strength refrigerated truck box,snowfall refrigerated truck body |
||
Product Description
CBU Refrigerated Truck Body
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | snowfall truck body |
| Transmission Type | Manual |
| Horsepower | <150hp |
| Fuel | Diesel |
| Condition | New |
| Weight | Light in Weight |
| Colour | White or Other Colour |
| Size | Customizable |
| Strength | High Strength |
| Assembly | Unique & Easy Installation |
| Production | Formed at High Pressure by Vacuum Tech |
| Durability | Stability & Consistency |
| Sealing | Better Sealing |
| Installation | Easy and Unique |
| Technology | Internation Patented Technology |
| Transport Package | Export Standard |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| HS Code | 8707909000 |
| Production Capacity | 150 Sets Per Month |
Product Description
Our CBU Refrigerated Truck Body combines advanced materials and construction techniques to deliver superior thermal insulation and durability for commercial refrigeration applications.
Material & Performance
- New type FRP (Fiber Reinforced Plastic) used for outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for excellent thermal insulation
- Panels fixed to steel frame with high-strength adhesive and rivets for structural integrity
Construction Features
- Fully enclosed structure with high-strength structural adhesive for reliable sealing and insulation
- Designed for easy and fast assembly
- High-accuracy door panels with imported sealing rubber for optimal airtight performance
- Interior and exterior finished with aluminum alloy or stainless steel components
- Protection guardrails and lighting systems for safety and visibility
- Reinforced floor design with figured aluminum panels for durability and easy loading
Customization Options
- Customizable size and configuration to meet specific requirements
- Choice of refrigeration units (USA, German, or Chinese made)
- Option for multiple temperature zones within the same van
- Selection of materials and structural design based on customer needs
Key Properties
- Lightweight: 30-40% lighter than traditional products
- Thermal Insulation: Overall heat transfer coefficient below 0.3W/M².K
- Durability: 4-6 times longer service life than conventional products
- Surface Quality: High strength, chemical resistant, and easy to clean
- Water Resistance: Excellent impermeability on both sides
- Fire Safety: Meets national standard B1 level
- Maintenance: Repairs leave no visible traces
- Eco-Friendly: No volatile substances, fluorine-free insulation
Our refrigerated truck bodies have been exported worldwide and enjoy an excellent reputation for quality and performance in commercial refrigeration applications.
