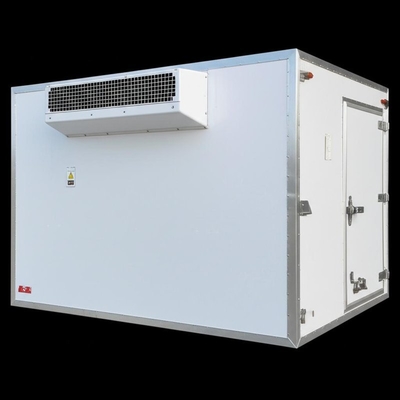

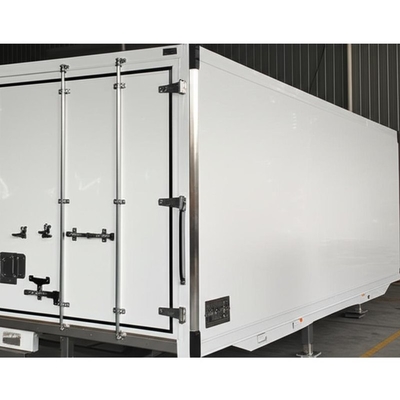

Lightweight Fiberglass Refrigerated Truck Body Customizable Size
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | 2500 |
|
Detail Information |
|||
| Outer Material: | FRP | Inner Material: | FRP |
|---|---|---|---|
| Insulation Material: | Extruded Polystyrene Foam | Heat Conductivity: | 0.20W/M².K |
| Heat Transference: | Below 0.3W/M².K | Weight Reduction: | 30-40% Lighter |
| Fire Retardant: | B1 Level | Service Life: | 4-6 Times Longer |
| Door Sealing: | Imported Rubber | Floor Material: | Figured Aluminum Panel |
| Edge Material: | Aluminum Alloy/stainless Steel | Hinge Material: | Stainless Steel/galvanized |
| Water Impermeability: | Excellent | Environmental Impact: | No Volatile Substances |
| Refrigerator Options: | USA/German/Chinese | ||
| Highlight: | lightweight fiberglass refrigerated truck body,customizable refrigerated truck box,fiberglass refrigerated truck body |
||
Product Description
Fiberglass Refrigerated Truck Body/Freezer Truck
| Attribute | Value |
|---|---|
| Model NO. | snowfall truck body |
| Weight | Light in Weight |
| Color | White or Other Color |
| Size | Customizable |
| Strength | High Strength |
| Assembly | Unique & Easy Installation |
| Sealing | Better Sealing |
| Transport Package | Export Standard |
| Trademark | SNOWFALL |
| Origin | Guangzhou, China |
| Production Capacity | 300 Sets Per Month |
Product Description
High-performance refrigerated truck body designed for optimal thermal insulation and durability.
Material & Performance
- New type FRP (Fiberglass Reinforced Plastic) used as outer and inner skin
- Sandwich panel construction with extruded polystyrene foam core for excellent thermal insulation
- Panels fixed to steel frame with high-strength adhesive and rivets for maximum durability
Construction
- Fully enclosed structure with panels adhered using high-strength structural adhesive
- Reliable sealing and insulation properties with easy and fast assembly
Specification
- High-accuracy door panels with imported sealing rubber for excellent airtight performance
- Interior and exterior decorated with aluminum alloy or stainless steel components
- Protection guardrails and lighting systems installed for safety and functionality
- Reinforced floor design with figured aluminum panels for superior loading capacity
- Customizable design to meet specific material, structure, and refrigeration requirements
- Optional interior compartments for different temperature zones
Main Properties
- Lightweight: 30-40% lighter than traditional products
- Excellent thermal insulation with low heat conductivity (K-value below 0.3W/M².K)
- Superior impermeability with water-resistant FRP panels
- Fire retardant performance meeting national standard B1 level
- Extended service life: 4-6 times longer than conventional products
- Easy maintenance with seamless repair capabilities
- Environmentally friendly construction with no volatile or corrosive substances
- Compatible with refrigeration units from USA, Germany, or China
